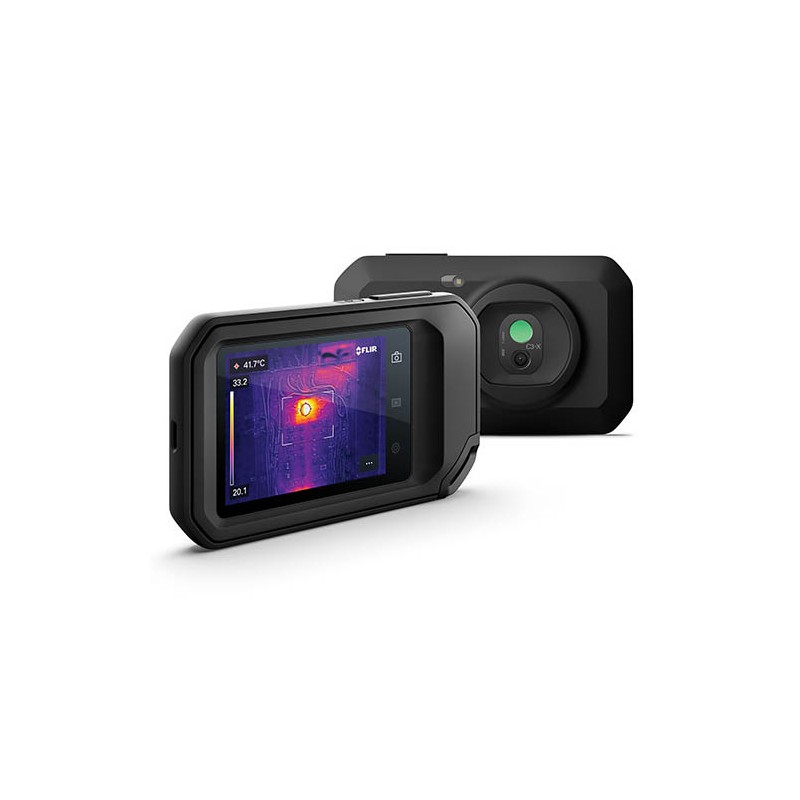

FLIR C3-X

Product Features:

• Quickly find hidden faults and reduce diagnostic time with this powerful, professional tool
• Identify and troubleshoot problems faster with 128 x 96 (12,288 pixels) true thermal imager and 5-megapixel visual camera
• Instantly recognize location of temperature issue with FLIR MSX® (Multi-Spectral Dynamic Imaging), which extracts scene details from built-in visual camera and embosses them onto full thermal image
• See into dark, difficult-to-reach areas with bright LED flashlight
• Upload images and data quickly, then communicate findings easily with customers
• Upload directly to FLIR Ignite to conveniently store, organize, and back-up images
• Identify and describe potential issues by adding annotations to images
• Share findings easily and securely by sending password-protected links via email
• Provide customers professional reports with images that document problems and repairs using preferred software, such as FLIR Thermal Studio
• Take portable, affordable C3-X to every job
• IP54 enclosure provides high level of protection against dust and water
• Designed to withstand 2m (6.6 ft) drop
• Carry compact C3-X in your pocket or stow easily in crowded tool bag

Overview

• IR sensor: 128 x 96 (12,288 pixels)
• Thermal sensitivity/NETD: <70 mK
• Field of view (FOV): 53.6°
• Minimum focus distance: Thermal: 0.1 m (3.94 in); MSX®: 0.3 m (11.8 in)
• Image frequency: 8.7 Hz
• Focus: Focus free
• Spectral range: 8-14 μm
• Screen size: 3.5 in
• Digital camera: 5 MP
• Digital camera focus: Fixed

Image Presentation

• Image adjustment: Automatic level and span; Manual level and span
• Image modes: Infrared image; Visual image; MSX (Embossed visual details on thermal image); Picture-in-picture (IR area on visual image)
• Gallery: Thumbnails and custom folder structure
• Color palettes: Iron, Gray, Rainbow, Rainbow HC
• Auto orientation: Yes
• Touch screen: Capacitive touch

Measurement and Analysis

• Object temperature range: -20 to 300°C (-4 to 572°F)
• Accuracy: 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3%; [Ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
• Measurement functions: Spot; Box with max./min.
• Measurement correction: Emissivity; matt/semi-matt/semi-gloss + custom value; Reflected apparent temperature; Atmospheric compensation

Image Storage

• Storage media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
• Image storage capacity: >5000 images
• Image file format: Standard JPEG, 14-bit measurement data included

Communication and Connectivity

• Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
• USB: USB 2.0, Type-C connector
• Bluetooth®: PAN
• Image upload: Directly upload images to FLIR Ignite cloud library and services

Additional Information

• Battery type: Rechargeable built-in Lithium ion battery
• Battery operating time: 4 hours
• Charging system: USB-C (1 A)
• Charging time: 2 hours
• External power operation: 5 V, USB-C
• Operating temperature range: -10 to 50°C (14 to 122°F)
• Storage temperature range: -40 to 70°C (-40 to 158°F)
• Encapsulation: Camera housing and lens: IP54 (IEC 60529)
• Drop test: Designed for 2 m (6.6 ft)
• Size: 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
• Tripod mounting (built-in): UNC 1/4 in.-20
