Extech 380976-K

Name: Extech 380976-K
Brand: Extech
SKU: EX77118545E3
Price: 228.00 USD
Availability: InStock

Reference EX77118545E3

Brand Extech

True-RMS AC 3-Phase Power Clamp Meter Kit, 600VAC/DC, 1000AAC/DC & HVAC

$228

Quantity

Description

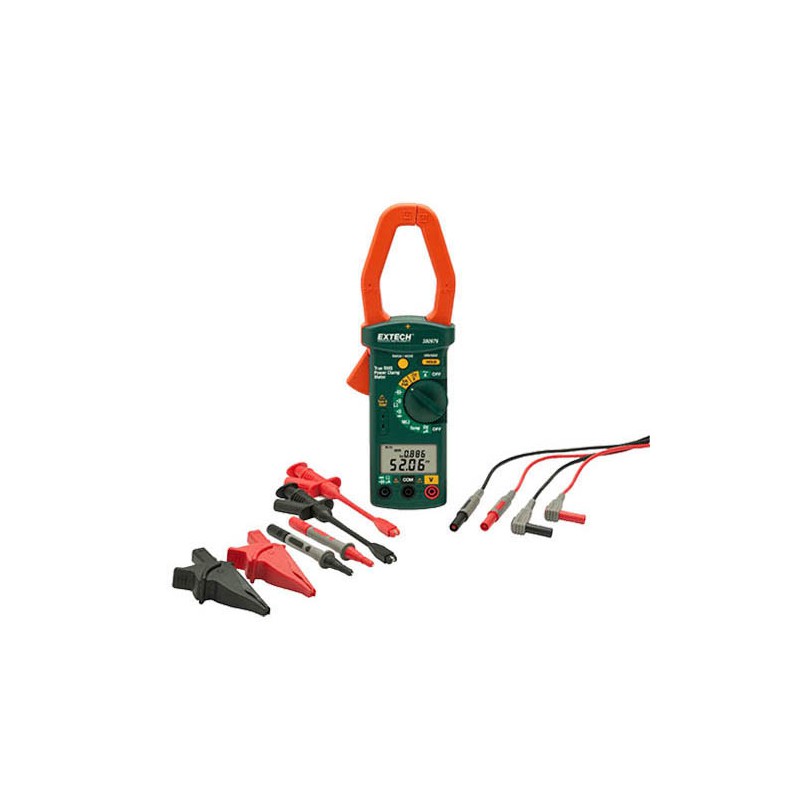

The Extech 380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter Kit measures Current, Resistance, Temperature (Type K), 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display.

Product Details

Reference EX77118545E3

1 - Test Lead Kit
1 - General Purpose Type K Thermocouple Probe
1 - Carrying Case
1 - 9V Battery

1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
AC+DC µA current with 10nA resolution for flame rod tests
Auto Detect AC/DC Voltage measurements with simultaneous frequency display
Capacitance to 7000µF with 0.001µF resolution
High Resistance tests to 100MOhm
Type K, °C/°F switchable, temperature to 1000°F
Diode and Continuity tests
Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
