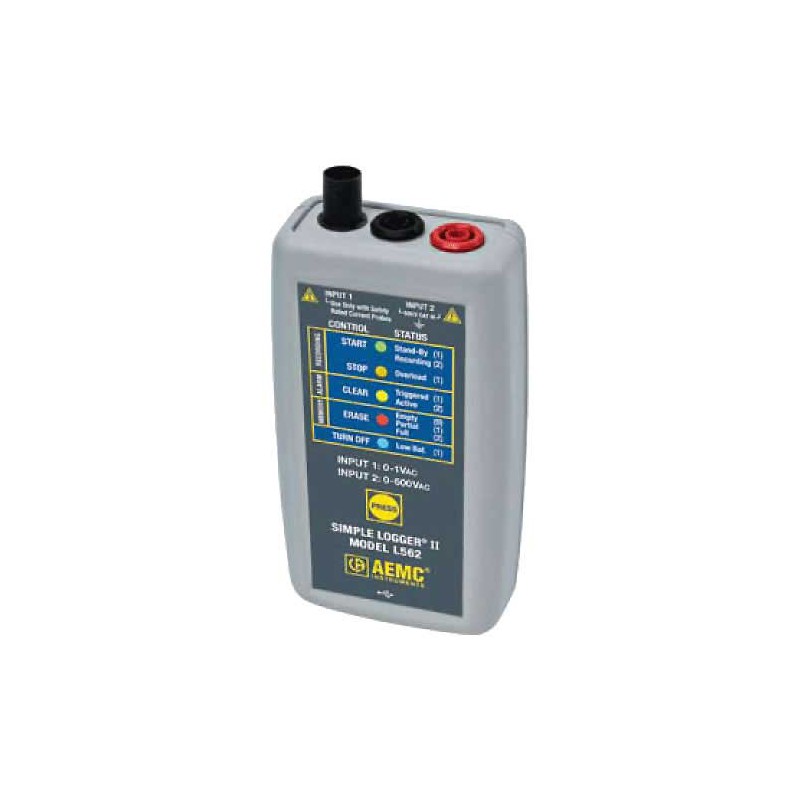

AEMC L562

AE79761962AL
AEMC

Simple Logger II Data Logger (2-Channel, TRMS, Voltage & Current, DataView Software)

$348
Quantity

Description

The Simple Logger® II Model L562 is a two channel Volt/Amp data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRMTM) and delayed start time are just two of the many application friendly features.

The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.

Product Details
AE79761962AL
  • 2 - Color-coded test leads with color coded Alligator clips
  • 1 - USB type A to 5 pin MiniB and USB stick
  • 1 - DataView software
  • 1 - Instruction Manual

Product Features:

  • 2 input channels
  • Voltage: 0 to 600VAC TRMS
  • Current: compatible with current probes with voltage outputs
  • 64 samples per cycle
  • 3 user selectable storage modes; Stop when full, FIFO, XRM®
  • Programmable storage rates from 8 every second to 1 every day
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by two standard AA Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display Logger status
  • Includes DataView® software FREE for data storage, real-time waveform display, analysis and report generation
  • 300V Cat IV; 600V Cat III with a safety rated current probe attached

Applications

  • Single phase power monitoring
  • Residential, commercial, industrial troubleshooting
  • Find sags and surges
  • Track energy usage
