AEMC 8510  from AEMC
  • AEMC 8510  from AEMC

AEMC 8510

AE98593566A8
AEMC

90-240V, 50/60Hz Universal Supply Digital Transformer Ratiometer

$2,685
Quantity

Description

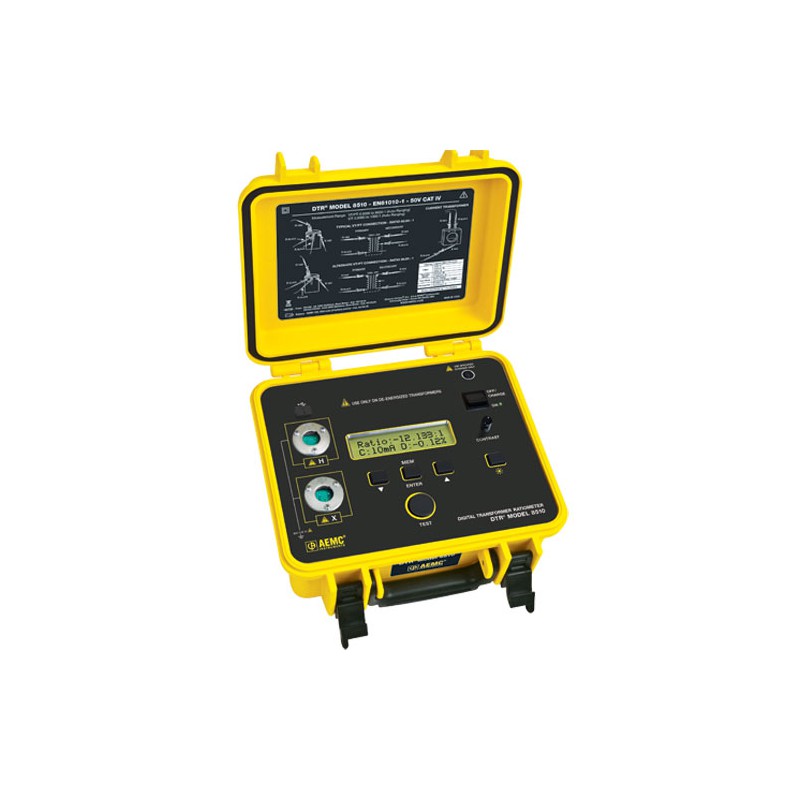

The AEMC DTR-8510 is a portable, 90-240V, 50/60Hz Universal Supplied Digital Transformer Ratiometer designed for on-site testing of power transformers, VT/PT, and current transformers. Rugged and reliable, the AEMC DTR-85100 is built into an attractive, sealed structural polypropylene case designed to withstand the rigors of industrial and utility field use.

Product Details
AE98593566A8
  • 1 - Rechargeable 12V NiMH battery
  • 1 - Power Supply Cord
  • 1 - DataView analysis software on CD Disc
  • 1 - Test Lead Set
  • 1 - Instruction Manual

Product Features:

  • Measures power transformers, VT/PTs and current transformer CT turns ratios
  • Displays turn ratio, excitation current, winding polarity and % deviation from the nameplate values
  • Universal voltage (90-240V supply, 50-60Hz) via external smart/fast battery charger; complete charge in less than 4 hours
  • Internal NiMH battery packs provide up to 10 hours of continuous operation
  • Tests performed by exciting the primary and reading the secondary; provides safer conditions for the operator
  • Display warns of incorrect lead connection, reverse polarity, open and short circuits
  • Easy connection and test setup; no calibration or balancing required
  • Large dual display with adjustable contrast ensures clearer visibility in any lighting environment day or night
  • Low battery indicator
  • Includes 15 foot lead set and soft carrying bag
  • Stores up to 10,000 test results in internal memory
  • USB port facilitates configuring the instrument and downloading test results
  • EN 61010-1; 50V CAT IV
  • Includes DataView analysis software for programming, downloading, storing and report generation of test data
