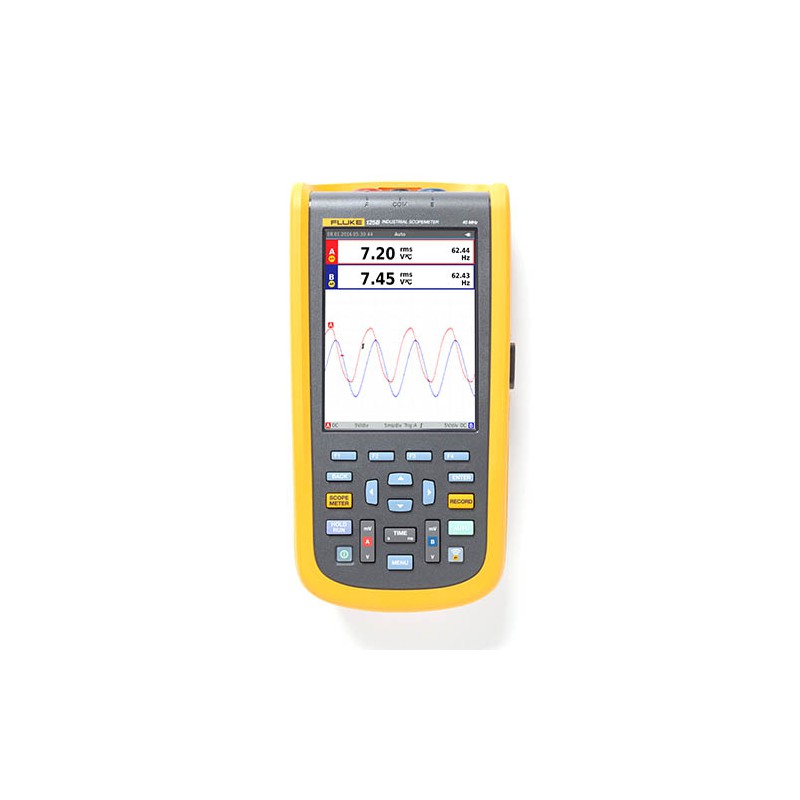

Fluke 125B/NA

Name: Fluke 125B/NA
Brand: Fluke
SKU: FL22758445F1
Price: 2539.00 USD
Availability: InStock

Reference FL22758445F1

Brand Fluke

40 MHz, 2-Channel, 40 MS/s Industrial ScopeMeter Hand-Held Oscilloscope with Bus Health with Fluke Connect Compatibility

$2,539

Quantity

Description

The Fluke 125BNA 40 MHz, 2-Channel, 40 MS/s Industrial ScopeMeter Hand-Held Oscilloscope with Bus Health and Fluke Connect Compatibility is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It is a truly integrated test tool with oscilloscope, multimeter and high-speed recorder in one, easy-to-use instrument. The 125B/NA also integrates with Fluke Connect mobile app to enable further collaboration, data analysis and archiving of critical test information.

The 125B/NA includes innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect and View trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.

Product Details

Reference FL22758445F1

1 - Rechargeable Li-ion Battery Pack
1 - Switch Mode Power Supply, Adapter/Battery Charger
1 - Shielded Test Leads with Black Ground Leads
1 - Black Test Lead (for Grounding)
1 - Set of Red and Black Hook Clips
1 - Black Banana-to-BNC Adapter
1 - 10:1 Voltage Probe
1 - i400s AC Current Clamp
1 - USB Angled Adapter
1 - WiFi USB Adapter**
1 - User Manual and Safety Information
(**WiFi USB adapter NOT available in all countries)

Product Features:

Full function dual input scope and meter
Oscilloscope bandwidth: 40 MHz
Meter and scope recorder
Scope cursor measurements
Power and harmonics measurements
Bus health test
Two 5,000-count true-rms digital multimeters
Connect-and-View trigger simplicity for hands-off operation
IntellaSet technology automatically and intelligently adjusts numerical readouts
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals
WiFi adapter** connects to internal USB port to wirelessly transfer information to PC, laptop or Fluke Connect mobile app
**Note: WiFi USB adapter NOT available in all countries

Fluke Connect Mobile App

AutoRecord measurements: Take measurements automatically and instantly save them to your phone; wirelessly save measurements to Fluke Cloud and add text or audio annotations
TrendIt graphs: Trend measurements from a single session in a time series graph
ShareLive video call: View live tool measurements, video and audio to collaborate in real time with your entire team, without leaving the field
Fluke Cloud storage: Securely store up to 5 GB of data securely, per user
Reports: Create reports with accurate and traceable maintenance data
