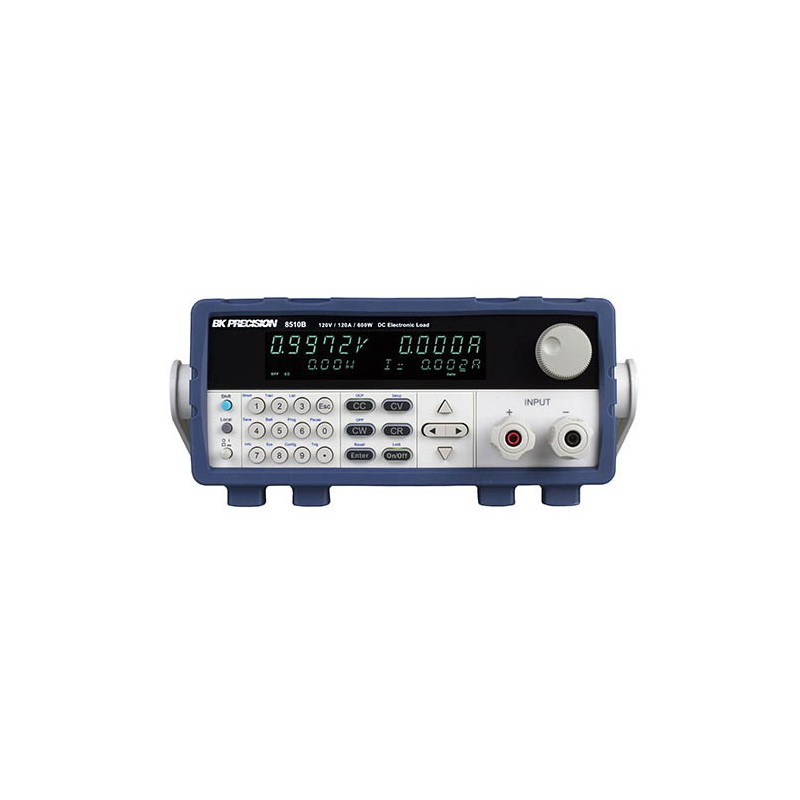

BK Precision 8510B

Name: BK Precision 8510B
Brand: BK Precision
SKU: BP94603795BP
Price: 1998.00 USD
Availability: InStock

Reference BP94603795BP

Brand BK Precision

Programmable DC Electronic Load, 600W, 120V, 120A

$1,998

Quantity

Description

BK Precision 8510B Programmable DC Electronic Load, 600W, 120V, 120A improves upon all aspects of its predecessor while maintaining dependability at a value price. A set of comprehensive functions makes this model a versatile tool for testing and evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays. List mode, transient mode, automatic test mode, and battery test mode offer a variety of test tools for lab or production line applications. Continuously switching and pulsing load conditions put a dynamically changing load on DC sources. Load behavior can be triggered internally, externally, or remotely from the included application software. Contained in a compact benchtop form factor, these loads operate in constant current (CC), constant voltage (CV), constant resistance (CR), or constant power (CW) mode. Internal memory allows for 100 sets of user configurable parameters such as voltage, current, slew rate and width for quick system recall. PC software is provided for front panel emulation, generating and executing test sequences, or logging measurement data without the need to write source code. Additionally, this application software integrates with NI Data Dashboard for LabVIEW applications, allowing users to create a custom dashboard on a tablet computer or smart phone to remotely monitor the 8510B.

Product Details

Reference BP94603795BP

1 - Power cord
1 - Certificate of Calibration
1 - USB to TTL serial converter IT-E132B
1 - USB cable

Product Features:

Power: 600W
Rated Voltage: 120V
Rated Current: 120A
CC/CV/CR/CW operating modes
16-bit voltage and current measurement system providing up to 0.1 mV / 0.1 mA resolution
Transient mode up to 10 kHz in CC mode
List mode function for custom step sequences
Supports both SCPI and backwards compatible 8500 series protocol
Store and recall up to 100 instrument settings
Adjustable slew rate in CC mode
Flexible triggering options via front panel, external input, timer, or bus
Built-in battery test function, specify cut-off voltage, capacity level, and time
Test modes to validate the OCP/OPP protection functions of a power supply
OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
Remote voltage sensing to compensate for the effect of voltage drop in wires
Short-circuit test
Analog current control and monitoring
Two thermostatically controlled fans (linear-speed control to minimize noise)
TTL (DB9) interface with USB adapter
CR-LED mode to simulate the loading behavior of typical LEDs
Integrated meter measures voltage, current, and power
Rack-mountable
Bright dual-line display shows both measured input values and set parameters
PC software provided for front panel emulation, generating and executing test sequences, or logging measurement data
