Ametek PK2-201N-SS

Name: Ametek PK2-201N-SS
Brand: Ametek
SKU: AM89592170AP
Price: 9813.00 USD
Availability: InStock

Reference AM89592170AP

Brand Ametek

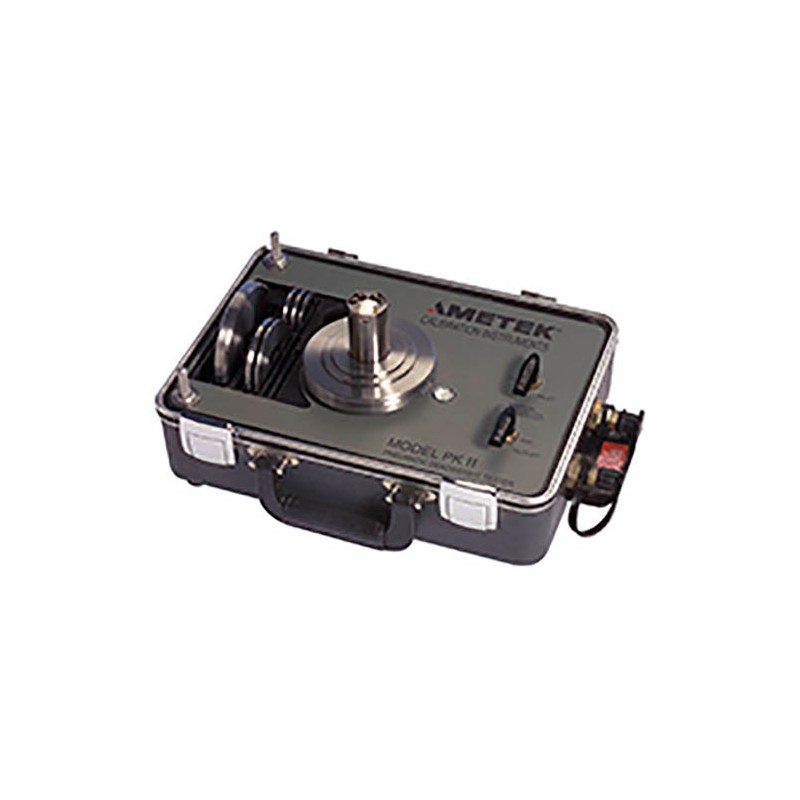

PKII Pneumatic Deadweight Tester, 0.01-2.0 bar, Stainless Steel Weight Set, +/- 0.05% Accuracy

$9,813

Quantity

Description

The Ametek PK2201NSS PKII Pneumatic Deadweight Tester, 0.01-2.0 bar, Stainless Steel Weight Set, +/- 0.05% Accuracy is a floating ball type, pneumatic deadweight tester. This model is engineered to offer user-friendly features, safe operation, and an optimal performance in the field or in the lab. This model features a self-regulating design, that allows automatic stabilization of weights, eliminating the need to adjust input pressure. The setup for the PK2201NSS tester is completed by simply connecting two tubes; one for the supply and one for the unit-under-test, leveling the PK II, and adding the appropriate weights.

Product Features:

Range: 1 to 200 kPa
Increment: 0.5 kPa
W/C and Ball Output: 1 and 2 kPa
Accuracy: ±0.050% rdg (standard)
Connection: 1/4" Female NPT
Ceramic Ball Material
Stainless Steel Weight Set
Pressure Source: Nitrogen or Instrument/Shop air
Max Supply Pressure: 100 psi/689 kPa
Min Supply Pressure: 30 psi/206 kPa
Overhung weight carriers reduces side thrust and friction; which lengthens the life of the ball/nozzle and carrier
Floating ball supported only by a thin film of air which is virtually frictionless
Flow regulator automatically adjusts the input air flow to maintain the ball and weights in a float position
Bulls-eye level for reference when preparing the unit for use

Product Details

Reference AM89592170AP

1 - Tester Base with Case
1 - Weight Set
1 - Manual
1 - NIST Traceable Certificate
1 - Model K-1082 Tubing Kit
