Ametek CSC201

Name: Ametek CSC201
Brand: Ametek
SKU: AM33012794AC
Price: 2034.00 USD
Availability: InStock

Reference AM33012794AC

Brand Ametek

Compact Thermocouple-RTD Calibrator

$2,034

Quantity

Description

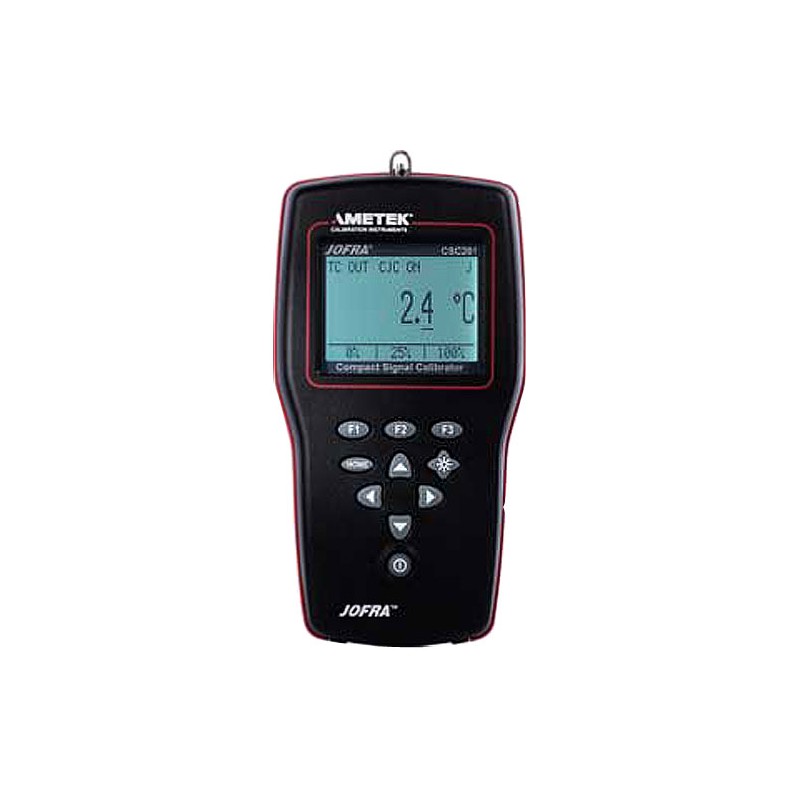

The Ametek CSC201 Compact Thermocouple-RTD Calibrator is a compact temperature signal calibrator. Calibrate or measure thermocouples and RTD´s. A large number of predefined sensor types are available. This model features an easy-to-use, intuitive user interface, with comprehensive ramp and step functions. All functions are displayed on the large ClearBrite™ display. The Ametek CSC201 has fuseless protection which provides high accuracy without relying on fragile measurement or source circuitry.

Product Features:

Sources and Reads 13 TCs and 16 RTDs
Ohms, mV and customized RTD curves
Custom Curve Programming
Ultra-Brite Display
Function Keys for Easy Value Entry
Stand Alone or Use with PC
Designed to meet high accuracy demands from modern sensors and transmitters
Fast RTD simulation: works with pulsed excitation transmitters and PLC´s
Use with APM MK II Modules for Pressure Measurement
Temperature, RTD and TC Measurement and Simulation
User Defined RTD Correction Coefficients
Resistance, measurement and simulation
mV, Measurement and Simulation
Easy zero/full span entry, step/ramp functions including user defined time settings
External Pressure Modules, Available as Complete Systems with Calibration Pumps
T/C Read and Simulate B, C, E, J, K, L, N, R, S, T, U, BP, XK
CJC Installed with On/Off Selection
RTD Read and Simulate Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100, Ni120, YSI400
