AEMC 6555

Name: AEMC 6555
Brand: AEMC
SKU: AE17725751A6
Price: 4338.00 USD
Availability: InStock

Reference AE17725751A6

Brand AEMC

15,000V Digital Megohmmeter

$4,338

Quantity

Description

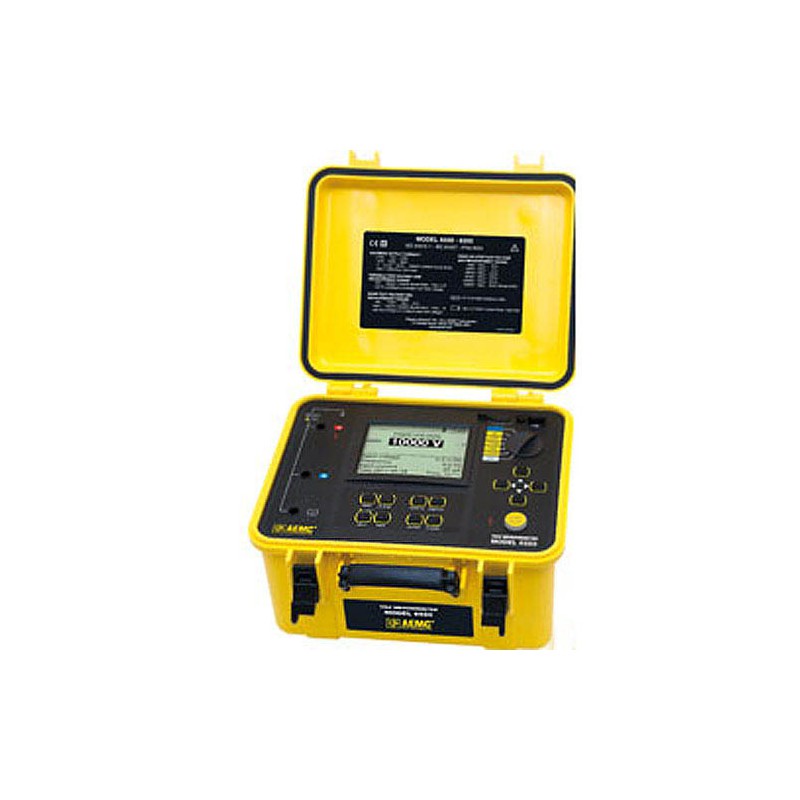

The AEMC 6555 15,000V Digital Megohmmeter is a high-end portable measuring instrument intended for the measurement of a wide varity of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 15,000V graphical insulation tester. The AEMC 6555 is packaged in a rugged case that is IP54 when closed. Test results and configuration information is provided on a graphical LCD screen as well as exportable through the use of DataView® software provided. The AEMC 6555 megohmmeter can operate on battery or AC power while testing. The AEMC 6550 also offers the ability to program up to three step voltage profiles (from 40 to 15,000), each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000 and 10,000, 15,000V.

Product Details

Reference AE17725751A6

1 - Red 9-foot 15kV integral lead
1 - Blue 9ft 15kV integral lead
1 - Black 9ft 15kV integral lead
1 - Red Alligator Clip (100V CAT IV)
1 - Blue Alligator Clip (100V CAT IV)
1 - Black Alligator Clip (100V CAT IV)
1 - Blue Test Probe (100V CAT IV)
1 - Red Test Probe (100V CAT IV)
1 - Optical USB cable
1 - US 115V Power Cord
1 - Small Classic Tool Bag
1 - User Manual

Product Features:

Wide measurement range from 10kΩ to 30TΩ
Fixed or programmable test voltage from 40V to 10kV
5mA charging current
Step voltage testing
Ramp voltage testing
Large backlit graphical LCD screen with digital display, bargraph and R(t)+v(t), i(t) and i(v) graphs
Automatic calculation of DAR / PI / DD /ΔR (ppm/V) ratios
Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes
Three filters to optimize measurement stability
Calculation of R at referrence temperature
Storage of 80,000 measurements
Optically-isolated USB communication for transfer onto PC and report generation with DataView® software

Applications

Test insulation on cables, transformers, motors, generators, insulators and wiring installations
High resistance or absorption tests
Spot reading tests
Timed resistance measurements
Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
Multi-layer insulation testing (DD)
Test old or water damaged installations over long time periods
Motor insulation resistance measurements
Computer controlled production line testing
Predictive maintenance by storing results on a PC for trend analysis with older tests
