AEMC 6471
AE33696203A6
2-Point, 3-Point and 4-Point Digital Ground Resistance Tester with Probes, Optional 2-Clamp Measurement
Description

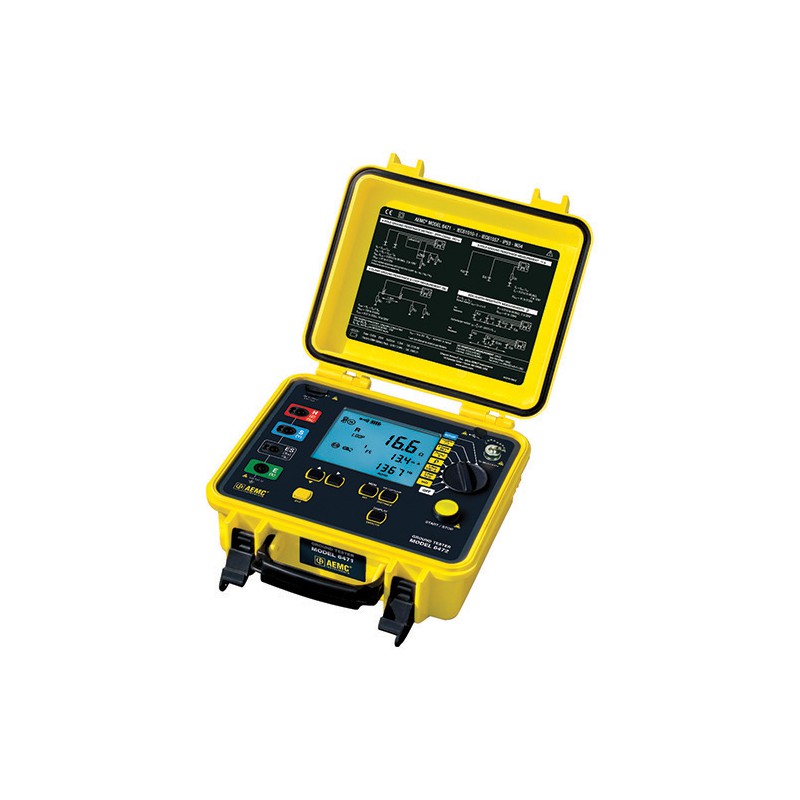

The AEMC Digital Ground Resistance Tester Model 6471 (2135.49) is a portable measurement instrument designed to measure Ground Resistance with 2 clamps (sold separately), no auxiliary rods, Bond/Connection Resistance (2-Pole and 4-Pole Kelvin sensing), Ground Resistance (3-Pole or 4-Pole), Ground Coupling Resistance, and Selective Ground Resistance, Soil Resistivity (Wenner or Schlumberger method). The 6471 measures from 0.01 to 99.99kΩ and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current.
Product Details
AE33696203A6
- 1 - Carrying bag
- 2 - Sets of SR182 Current Probes
- 1 - Rechargeable NiMH battery pack
- 1 - 110/240V power adapter with US power cord
- 1 - Optical USB cable
- 1 - USB stick with DataView software, ground tester workbook and user manual
Product Features:
- Ground Integrity Measurement
- Ground Resistance testing using the 2 clamp method (no auxiliary rods needed)
- Clamps are sold seperately
- 2- and 4-Point Bond Resistance/Continuity measurement (DC Resistance) with automatic polarity reversal
- 3-Point Fall-of-Potential measurement with manual or automatic frequency selection
- 4-Point Soil Resistivity measurement with automatic calculation of Rho (r) and user selection of the Wenner or Schlumberger test method
- 3-Point Earth Coupling measurement
- Manual and Automatic frequency scan from 41 to 513Hz for optimum test accuracy in electrically noisy environments
- Selectable test voltage of 16 or 32V up to 250mA of test current
- Auto Power OFF feature
- Automatic recognition of all electrode connections and their resistance value
- Stores up to 512 complete test results in internal memory
- Display with automatic backlight when entering a function
- Optically isolated USB communication cable includedRechargeable NiMH batteries from wall charger or vehicle power
- Rugged dustproof and rainproof field case - IP53 rated in closed position
- Grounding standards IEC 61557 parts 4 and 5 compliant
- Includes DataView software for set up, data storage, real-time display, analysis, report generation and system configuration
