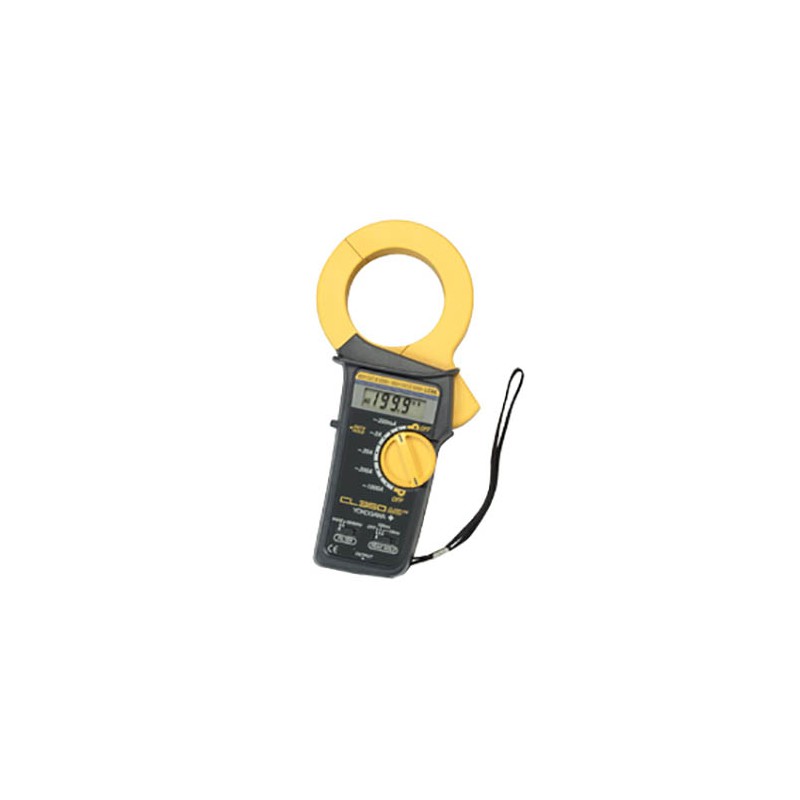

Yokogawa CL360

Product Features:

• Leakage current measurement with current range from 200mA to 1000A
• AC and DC output
• 68mm in diameter of measurable conductor
• For use with conformity to safety standards EN 61010-1, EN 61010-2-032 (CAT III 300 V)
• Method of detection: Mean Value
• Display: LCD (Digital display: 1999 counts)
• Response Time: Approx. 1 second
• Range Switching: Manual-range
• Data hold: On all range
• Operating temperature and humidity: -10 - 50°C , 80% RH or less (no condensation)
• Influence of external magnetic field: 15 mA or less in proximity to a 10 mm-dia conductor carrying 100A
• Influence of conductor position: 2% or less
• Influence of Residual Current: 10 mA or less in proximity to a 10 mm-dia conductor carrying 100A
• Safety Standard: Conforms EN61010-1, EN61010-2-032
• Circuit voltage: 300 Vrms or less
• Withstanding voltage: 3.7 kV AC
• For use with one minute
• Power Supply: 6 LR61 x 1; 6F22 (006P) 9V x 1
• Battery Life: Approx. 60 hours (continuous)
• Consumed current: Approx. 5 mA
