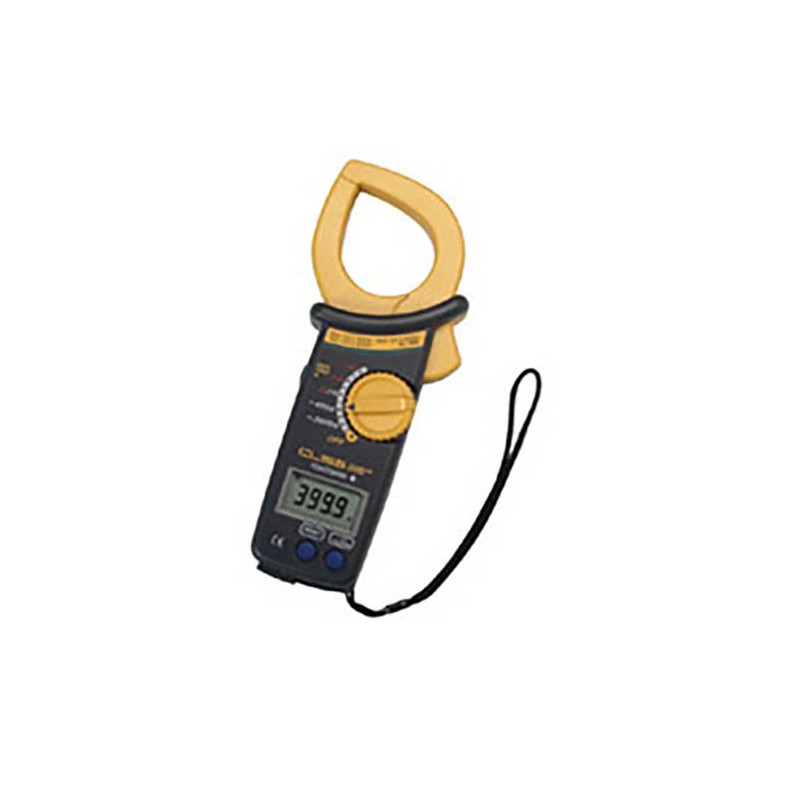

Yokogawa CL155

Product Features:

• AC current measurement with current ranges up to 2000A
• AC/DC voltage and resistance measurements
• True-RMS display
• 54mm in diameter of measurable conductor
• DC output function
• Data hold function
• Sleep function
• Approved for conformity to safety standards EN61010-1, EN61010-2-031, EN61010-2-032 (CAT. HI 600 V, CAT. II1000 V)
• Display (LCD, Digital Counts): 3999
• AC Current Accuracy (400A Reference): 1.0+3(50/60Hz); 2.0+3(40~1kHz)
• AC Current Accuracy (2000A Reference, 0~1500A): 2.0+3(50/60Hz); 3.0+3(40~1kHz)
• AC Voltage Accuracy (40/400V/750V Reference): 1.0+2(50/60Hz); 1.5+3(40~1kHz)
• DC Voltage Accuracy (40/400V/1000V Reference): 1.0+2
• Resistance Accuracy (400/4k/40k/400kΩ reference): 1.5+2, Beeps at below 50± 35Ω (continuity check)
• DC Output Accuracy (400A, 0~400mV Reference): .5% rdg ± 0.5mV (50/60Hz); .5% rdg ± 0.5mV (40~1kHz)
• Method of detection: True-RMS
• Response Time: Approx. 2 seconds
• Range Switching: Manual-range (on AC current range) / Auto-range (on AC voltage range, resistance range)
• Data hold: On all range
• Operating temperature and humidity: 0-40°C, 85% RH or less (no condensation)
• Influence of external magnetic field: 1A or less at 400A/m
• Influence of conductor position: ± (2.0% rdg + 3dgt) or less
• Circuit voltage: 1000Vrms or less
• Withstanding voltage: 5.55kV AC for one minute
• Power Supply: R6P(SUM-3)x2 or LR6x2
