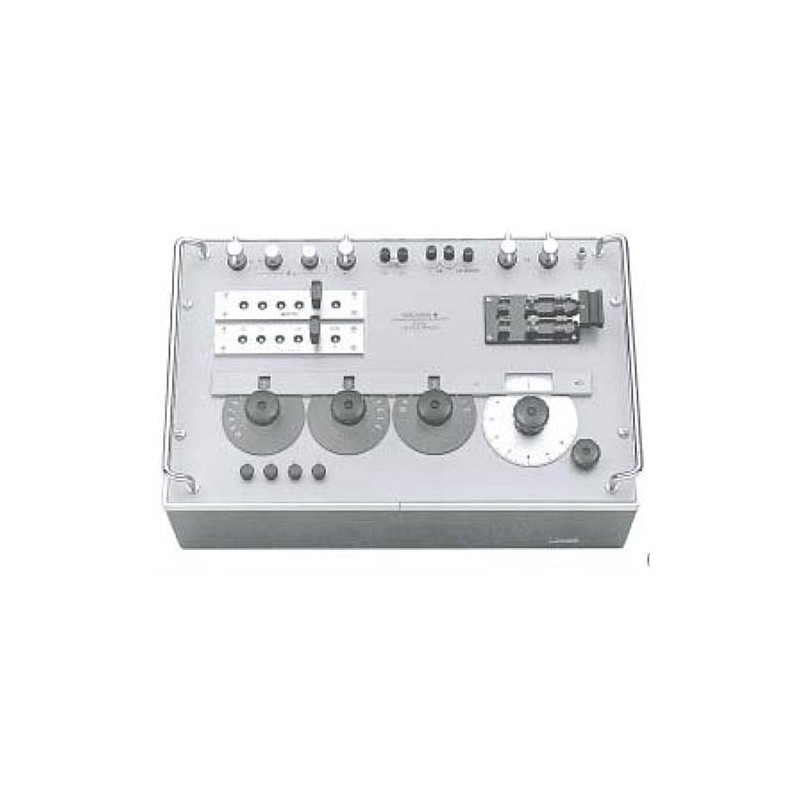

Yokogawa 275200

Product Features:

• Laboratory-grade accuracy: ±0.03 to ±0.05%
• Quick readout without error
• Excellent long-term stability: Resistance elements are made of selected manganin wire, stabilized by both artificial and natural aging after being wound
• Perfect guard system
• Stable measurement: Dial switches offer low contact resistance and little change due to aging, giving stable operation Inner/outer contact type plugs used for changing multiplication factor, assuring little change in resistance due to reinsertion of plugs
• Built-in standard resistors
• Bar resistor measurement
• Measuring Range: 0.1000mΩ to 111.10Ω in five digits
• Measuring Arm: (At Multiplier x1) 100mΩ x 10 + 10mΩ x 10 + 1mΩ x10 + (0.05 to 1.05mΩ)
• Multiplier: x 0.001 x 0.01 x 0.1 x 1 x 10 x 100
• Accuracy:
  • At resistances potential
  • Leads and current leads less then 10mΩ/wire
  • ±(0.03Ω of reader +1µΩ) at temperature at 10 to 35°C±2.5°C
  • ±(0.05Ω x multiplier +0.01mΩ) at temperature at 10 to 40°C
• Insulation Resistance: More than 100MΩ at 500V DC between electric circuit and case
• Dielectric Strength: 500V AC for one minute between electric circuit and case
• Case: Grey metal Case, with plastic feet and carrying handles
