Viavi DSP-TDR-BASE  from Viavi
  • Viavi DSP-TDR-BASE  from Viavi

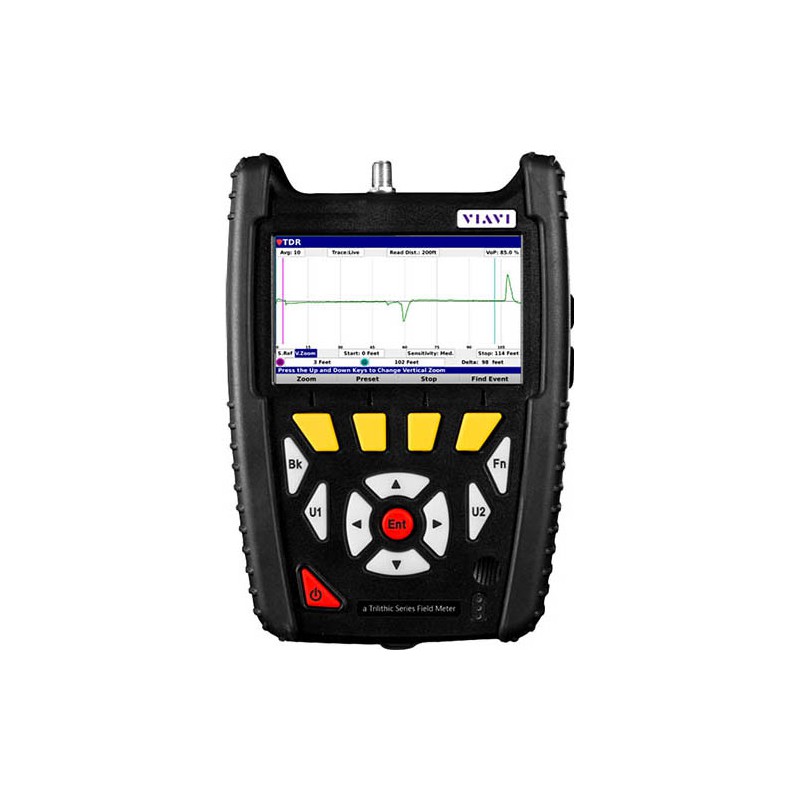

Viavi DSP-TDR-BASE

VI08353265VD
Viavi

DSP TDR Time Domain Reflectometer Base Package

$3,485
Quantity

Description

In the event of a cable break or fault, the Viavi DSP-TDR-BASE DSP TDR Time Domain Reflectometer enables cable service provider maintenance teams and contractors to quickly find the location to get service back online as soon as possible. Since a cable break likely means an outage, pin-pointing it quickly is very important. Length measurement accuracy is also critically important, as often the cable is underground and must be dug out to make the splice. A lack of precision in this measurement means a bigger hole must be dug. A TDR is needed to find breaks and faults, to keep the operator from paying for unnecessary span replacements.

Viavi DSP-TDR-BASE is designed for field use and has step technology, which enables it to show smaller faults, has no blind spot, and maintains accuracy for detecting impedance over the entire length of the cable. Automatic impedance matching allows for faster trace results without pulse width adjustments. In addition to the ability to find faults closer to the TDR (no blind spot) the TDR has a resolution of less than 1 foot (0.3m). The higher energy step TDR has an improved signal-to-noise ratio and digital averaging, eliminating noise interference, and producing a much more detailed cable image than available with a pulse TDR.

Viavi DSP-TDR-BASE In most cases it's desirable to document the test results for reporting to management or clients. When new cable spans are installed the cable length and performance must be verified and documented. A TDR chart is typically included in documentation for construction to show that an installed span is good. Viavi DSP-TDR-BASE has ethernet connectivity, and data can be uploaded to the cloud-based StrataSync asset and data management database, so no PC software is required. This gives management instant access to the information for better, quicker decision making and, in the case of the contractor, faster payment for services rendered.

Product Details
VI08353265VD
  • 1 - DSP TDR Mainframe
  • 1 - Fitted Carrying Case
  • 1 - Shoulder Strap
  • 1 - AC Charger
  • 1 - Stylus
  • 1 - Strand Hook

Product Features:

  • Provides lab-grade functionality in a rugged hand-held meter
  • "Step" technology for higher precision over entire cable length
  • Events list instantly viewable from function menu
  • Performs fast, complete, and precise measurements without blind spots
  • Data upload and retention with StrataSync via Ethernet
  • Built to last design for use in real environment of network technicians
  • Large, easy to read screen with easy access controls
  • Long battery of 12 hours plus (typical)
  • TDR measurements:
    • Maximum Distance: 15,954 ft. (4862 m)
    • Distance Accuracy: <1 ft. (0.3 m)
    • Noise Filter / AVG: 1 to 100 samples
    • Measurement Time: <2 seconds
    • VoP (Velocity of Propagation) Range: 60-99%
    • Storage: >1,000 measurement sets

Applications:

  • Reduce outage and line problem troubleshooting time
  • Avoid paying for unnecessary span replacements
  • Precision location means digging smaller holes
  • Eliminate unnecessary span replacements by pinpointing cable problems enabling efficient splicing
  • Document measurement results quickly with upload to StrataSync
