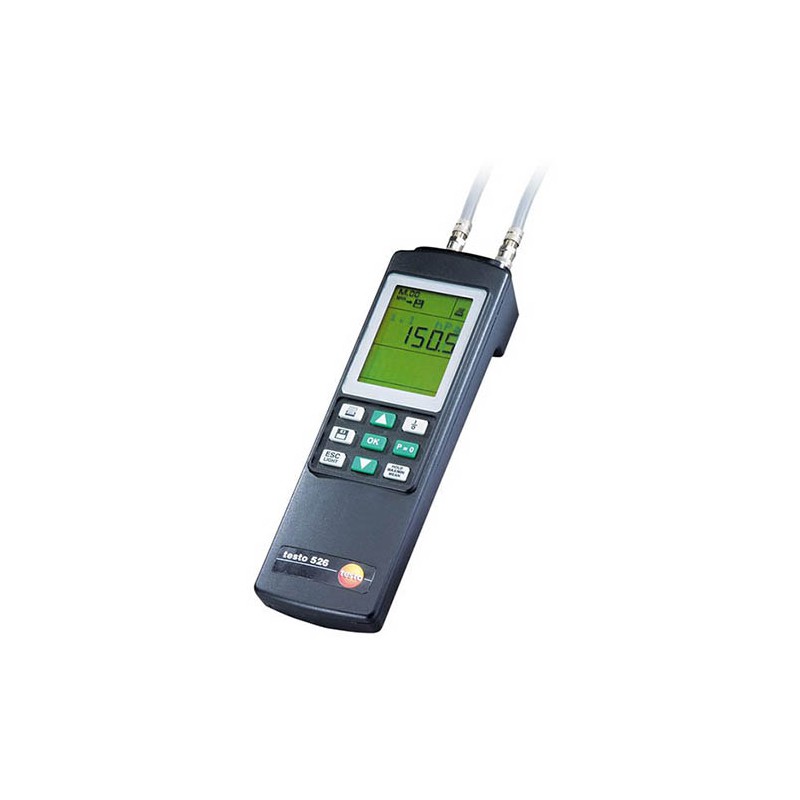

Testo 526-2

Name: Testo 526-2
Brand: Testo
SKU: TE88383474T5
Price: 1182.00 USD
Availability: InStock

Reference TE88383474T5

Brand Testo

Differential Pressure Meter, 0 to 2000 hPa, 0.05% Accuracy

$1,182

Quantity

Description

The Testo 526-2 (0560 5281) Differential Pressure Meter is ideal for checking pressure in sensitive industrial environments. Critical processes can be measured and monitored efficiently, with an accuracy of up to 0.05% of the full-scale value. The 526-2 has an internal sensor with a measuring range from 0 to 2000 hPa. It additionally has two probe inputs for the connection of further probes for the measurement of pressure and temperature. A large selection of probes is available for this purpose.

Specially for the purposes of tightness tests on containers, uninterrupted recording is possible via the test menu in testo 526-2. Measurement data may then be processed and analyzed via optional PC software.

Product Details

Reference TE88383474T5

1 - Differential Pressure Meter, 0.05% Accuracy (526-2)
1 - 9V Block Battery
1 - Calibration Protocol

Product Features:

Integrated differential pressure sensor with 0 to 2000 hPa measuring range
Accuracy: 0.05% of final value
Ideal for industrial applications, including testing compressed air systems, leaks in pipes and lines, pressure drop in containers
Built-in temperature compensation
Two probe sockets are compatible with wide range of pressure, temperature, and current/voltage probes
Direct zeroing of display value from pressure probes
Measures leakage rate (drop in pressure per time)
Multi-point and timed mean calculation
Records measurement data with freely selectable measuring rate
Hold function freezes readings
Min. and Max. button displays pressure extremes
2-line display with text menu guide
Fast-action coupling connection M8 x 0.5
Easy data storage by measurement site as well as analysis, archiving and documentation via optional PC software
