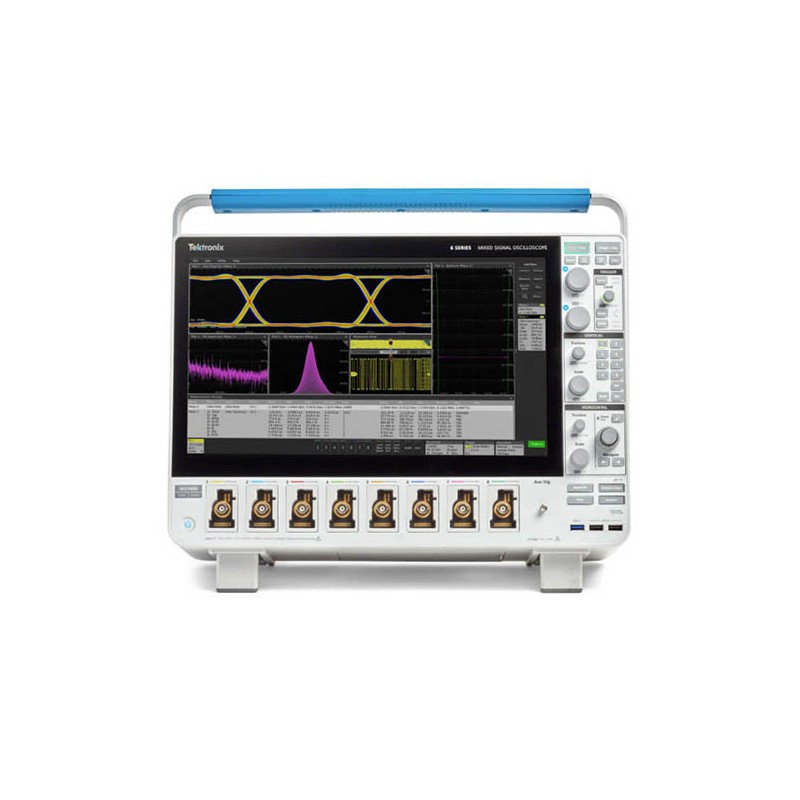

Tektronix MSO68B 6-BW-8000

Name: Tektronix MSO68B 6-BW-8000
Brand: Tektronix
SKU: TE16076010TM
Price: 126510.00 USD
Availability: InStock

Reference TE16076010TM

Brand Tektronix

8 GHz, 8-FlexChannel, Up to 50 GS/s Mixed Signal Oscilloscope, 62.5 Mpoints Record Length

$126,510

Quantity

Description

The Tektronix MSO68B6BW8000 8 GHz, 8-FlexChannel, Up to 50 GS/s Mixed Signal Oscilloscope, 62.5 Mpoints Record Length provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds. The remarkably innovative pinch-swipe-zoom touchscreen user interface coupled with the industry's largest high definition display and MSO68B 6-BW-8000 FlexChannel inputs that let users measure one analog or eight digital signals per channel, the MSO68B 6-BW-8000 is ready for today's toughest challenges and tomorrow's too.

Never let a lack of channels slow down verification and debug processes again

The MSO68B 6-BW-8000 offers better visibility into complex systems by offering four, six and eight-channel models with a large 15.6-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and Power Integrity require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the oscilloscope they were using was limited to two or four analog channels. Using a second oscilloscope involves significant effort to align the trigger points, difficulty in determining the timing relationships across the two displays, and documentation challenges.

Users might assume that a six and eight-channel oscilloscope would cost 50% or 100% more than a four-channel oscilloscope, and will be pleasantly surprised to find that six-channel models are only ~25% more than four channel models and eight-channel models are only ~67% (or less) more than four channel models. The additional analog channels can pay for themselves quickly by enabling users to keep current and future projects on schedule.

Product Details

Reference TE16076010TM

1 - 8 GHz, 8-FlexChannelUp to 50 GS/s Mixed Signal Oscilloscope, 62.5 Mpoints Record Length
8 - TPP1000 1 GHz Probes
1 - Embedded Help
1 - Front Cover with Integrated Accessory Pouch
1 - Mouse
1 - Power Cord
1 - Calibration Certificate Documenting Traceability to National Metrology Institute(s) and ISO9001/ISO17025 Quality System Registration
1 - User Manual
1 - One-year Warranty Covering All Parts and Labor on Instrument
1 - One-year Warranty Covering All Parts and Labor on Included Probes

Product Features:

Input channels:
- 8 FlexChannel inputs
- Each FlexChannel provides: One analog signal that can be displayed as waveform view, spectral view, or both simultaneously; and eight digital logic inputs with TLP058 logic probe
Bandwidth (all analog channels): 8 GHz
Sample rate (all analog / digital channels):
- Real-time: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (> 4 channels)
- Interpolated: 2.5 TS/s
Record length (all analog / digital channels):
- 62.5 Mpoints standard
- 125, 250, 500 Mpoints, or 1 Gpoints (optional, not included)
Waveform capture rate: >500,000 waveforms/s
Vertical resolution:
- 12-bit ADC
- Up to 16-bits in High Res mode
Standard trigger types:
- Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup and Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional, not included), RF vs. Time (optional, not included)
- Auxiliary Trigger ≤5 VRMS, 50Ω, 400 MHz (Edge Trigger only)
Standard analysis:
- Cursors: Waveform, V Bars, H Bars, V&H Bars
- Measurements: 36
- Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
- FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
- Plots: Time Trend, Histogram, Spectrum and Phase Noise
- Math: Basic waveform arithmetic, FFT, and advanced equation editor
- Search: Search on any trigger criteria
- Jitter: TIE and Phase Noise
Optional analysis (not included):
- Advanced Jitter and Eye Diagram Analysis
- Advanced Spectrum View
- RF vs. Time traces (magnitude, frequency, phase)
- Digital Power Management
- Mask/Limit Testing
- Inverters, Motors, and Drives
- LVDS Debug and Analysis
- PAM3 Analysis
- Advanced Power Measurements and Analysis
Optional serial bus trigger, decode and analysis (not included):
I2C, SPI, I3C, RS-232/422/485/UART, SPMI, CAN, CAN FD, LIN, FlexRay, SENT, PSI5, Automotive Ethernet, MIPI D-PHY, USB 2.0, eUSB2, Ethernet, Audio, MIL-STD-1553, ARINC 429, Spacewire, 8B/10B, NRZ, Manchester, SVID, MDIO
Optional serial compliance test: Ethernet, USB 2.0, Automotive Ethernet, Industrial Ethernet , MIPI DPHY 1.2
Optional memory analysis (not included): DDR3 debug, analysis, and compliance test
Arbitrary/Function Generator:
- 50 MHz waveform generation
- Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac
Digital voltmeter: 4-digit AC RMS, DC, and DC+AC RMS voltage measurements
Trigger frequency counter: 8-digit
Display:
- 15.6-inch (396 mm) TFT color
- High Definition (1,920 x 1,080) resolution
- Capacitive (multi-touch) touchscreen
Connectivity:
- USB Host (7 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet), Display Port, DVI-I, VGA
- e*Scope: Remotely view and control the oscilloscope over network connection through standard web browser
