AEMC 6526

Name: AEMC 6526
Brand: AEMC
SKU: AE51190631A6
Price: 496.00 USD
Availability: InStock

Reference AE51190631A6

Brand AEMC

Digital/Analog Handheld Megohmmeter with Bluetooth & DataView Software, 1000V Max Test Voltage

$496

Quantity

Description

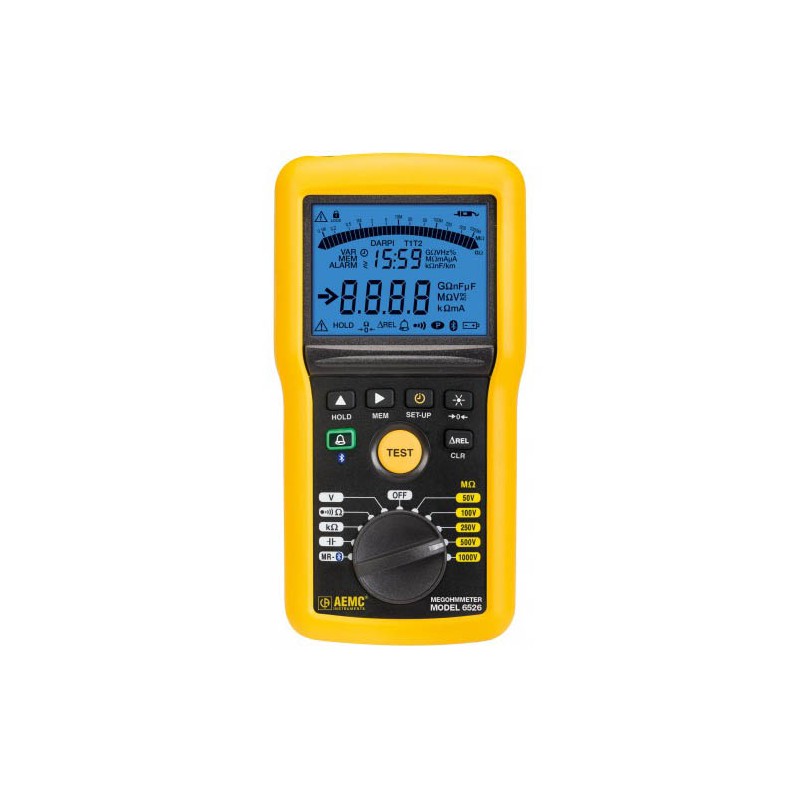

The AEMC 6526 (2155.53) Digital/Analog Handheld Megohmmeter is a handheld, battery-powered insulation and continuity tester. It can measure resistance, capacitance, continuity, frequency and voltage. The Model 6526 uses 50V, 100V, 250V, 500V and 1000V test voltages to measure insulation resistance up to 200GΩ. The 6526 also incorporates a 700V AC/DC True-RMS voltmeter as well as continuity testing with selectable 20mA and 200mA test currents. The Model 6526 includes Timer and Test Lock functions, allowing for hands-free operation. An automatic safety check protects the user with audio and visual signals as well as test inhibition when >25V is present on the test sample. DAR, PI, Alarms and backlit Pass/Fail test functions are also included. The large digital display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during testing. The optional remote test probe with flashlight (sold separately) simplifies repetitive testing and helps access hard-to-reach, poorly lit areas. With the capability to save up to 1300 tests in memory and Bluetooth communication, the Model 6526 excels in industrial environments where a wide range of voltages are needed.

Product Details

Reference AE51190631A6

1 - Digital/Analog Handheld Megohmmeter (Model 6526)
1 - Soft Carrying Pouch
2 - 1.5m Test Leads (Red/Black)
2 - Alligator Clips (Red/Black)
1 - Black Test Probe
6 - AA Batteries
1 - User Manaul
1 - Quick Start Guide
1 - USB Drive with Dataview Software

Product Features:

Multi-function tester can measure resistance, capacitance, continuity, frequency and voltage)
50V, 100V, 250V, 500V and 1000V insulation test voltages
Measures insulation resistance up to 200 GΩ
Calculates DAR and PI ratios
Timed Test Mode up to 40 minutes for Insulation Resistance Test
Test Lock feature allows for hands-free timed measurements up to 15 minutes
Performs continuity tests at 20mA or 200mA
Test lead resistance compensation for accurate low resistance measurements
True RMS AC/DC Voltmeter up to 700V
Ohmmeter to 1000kΩ and capacitance to 10µf
Frequency measurements from 15 to 800Hz
Auto discharge after Insulation Test
Hold function to "freeze" readings
Large and bright dual display with blue backlight
Pass/Fail indicator with green/red backlight
Auto Standby mode reduces power consumption
Memory stores up to 1300 measurement results
Bluetooth communication with included DataView software
Complies with IEC/EN 61557, 600V CAT IV

Applications:

Insulation measurement on communication cables, Ethernet cables and other low voltage AC and DC wiring
Insulation measurement on electronic components and circuits
Special applications in the aerospace and defense sectors where specified test voltages are required
Cables, small motors, pumps, transformers and industrial equipment
