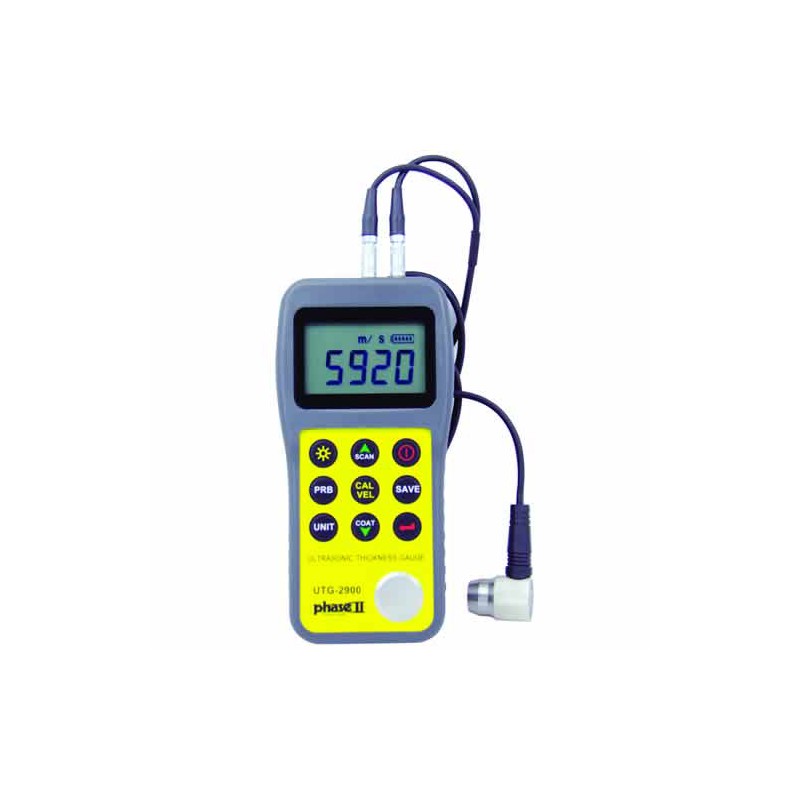

Phase II UTG-2900

Name: Phase II UTG-2900
Brand: Phase II
SKU: PI00361302PI
Price: 1083.00 USD
Availability: InStock

Reference PI00361302PI

Brand Phase II

Ultrasonic Thickness Gauge with Thru Coating Capability

$1,083

Quantity

Description

The Phase II UTG2900 Ultrasonic Thickness Gauge with Thru Coating Capability is packed with features typically found on high end models. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru-Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. The UTG-2900 is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminium, titanium, plastics, ceramics, glass and any other good, ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 accurately displays readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Product Details

Reference PI00361302PI

1 - Certificate of Calibration
1 - Custom Carrying Case
1 - User Manual

Product Features:

Display type: 4.5-digit LCD w/ backlight
Minimum display unit: 0.001 in./0.01mm (selectable)
Measuring range pulse-echo: 0.025 in. to 23.0 in. in steel
Echo-Echo: 0.118 in. to 2.35 in.
Accuracy: +/- (0.5% thickness + .001 in.)
Sound velocity range: 3280 ft./s to 32805 ft./s (1000 to 9999m/s)
Upper/Lower limit preset alarm: Yes
Scanning feature: Yes, 16 measurements/second
Operating temperature: 32 ° to 122 °F
Frequency: 5 MHz
Update range: 4 Hz
Memory: 20 groups (100 files/group)
Output: USB
Power supply: Two AA alkaline batteries
Battery life: Approx. 100 hours (w/backlight off)
Power consumption: Working current less than 3V
Multi-functional unit offers basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilitiesf
Designed to measure thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any ultrasonic wave conductor that has parallel top and bottom surfaces
Accurately displays readings in either inch or millimeter after simple calibration to known thickness or sound velocity
