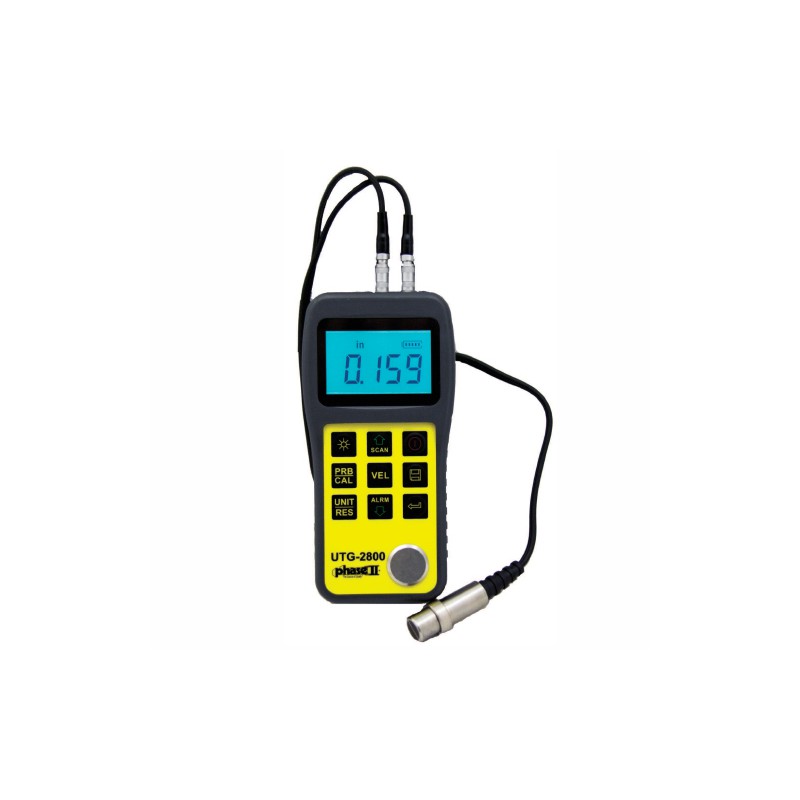

Phase II UTG-2800

PI71837324PI
Phase II

Ultrasonic Thickness Gauge with Scan, Min/Max Setting and USB Output

$736
Quantity

Description

The Phase II UTG2800 Ultrasonic Thickness Gauge with Scan, Min/Max Setting and USB Output is packed with features typically found on high-end models. The UTG-2800 offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities.

With its dynamic ultrasonic thickness gauge, the Phase II UTG-2800 is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good, ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2800 accurately displays readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Product Details
PI71837324PI
  • 1 - 5 Mhz Dual Sensor Probe
  • 1 - Certificate of Calibration
  • 1 - Custom Carrying Case
  • 1 - User Manual

Product Features:

  • Display type: 4-digit LCD w/ backlight
  • Minimum display unit: 0.001 in./0.01mm (selectable)
  • Measuring range: 0.040 in. to 12.0 in. in steel w/standard probe
  • Accuracy: +/- (0.5% thickness + .001 in.)
  • Sound velocity range: 3280 ft./s to 32805 ft./s (1000-9999m/s)
  • Upper/Lower limit preset alarm: Yes
  • Operating temperature: 32 °F to 122 °F
  • Frequency: 5 MHz
  • Update range: 4 Hz
  • Memory: 20 Groups (100 files/group)
  • Output: USB
  • Mini-Printer: Optional
  • Power supply: Two 3V AA alkaline batteries
  • Battery life: Approx. 100 hours (w/backlight off)
  • Power consumption: Working current is less than 3V
  • Multi-functional unit offers basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities
  • Designed to measure thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any ultrasonic wave conductor that has parallel top and bottom surfaces
  • Accurately displays readings in either inch or millimeter after simple calibration to known thickness or sound velocity
