Ralston QTVC-1KPSIG-D

Name: Ralston QTVC-1KPSIG-D
Brand: Ralston instruments
SKU: RI03960873RQ
Price: 2210.00 USD
Availability: InStock

Reference RI03960873RQ

Brand Ralston instruments

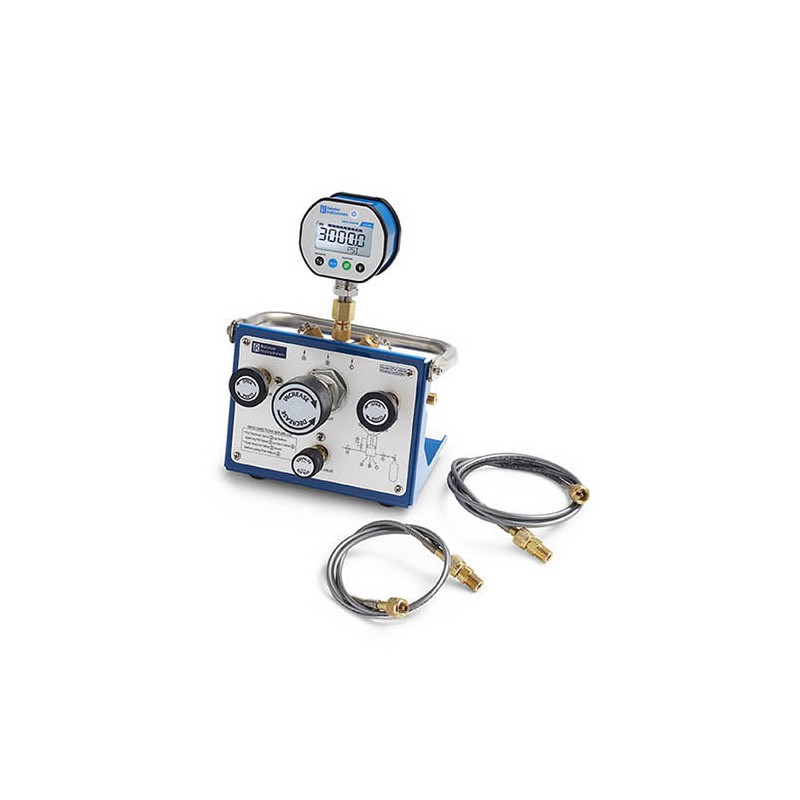

Compressed Gas Volume Controller with 1000 psi Digital Pressure Gauge, 1/4" Male NPT Process Connections, Hoses

$2,210

Quantity

Description

The Ralston QTVC-1KPSIG-D Compressed Gas Volume Controller with 1000 psi Digital Pressure Gauge connects to and calibrates both very low or high pressure instrumentation using the included pressure gauge. The light weight, compact unit is equipped with a fine adjust piston as well as fill, balance and vent valves. The proprietary pressure balanced fine adjustment piston allows for extremely precise, finger-tip control of pressure at 0.03 psi (2 mbar), 3000 psi (210 bar), or any range in between. The soft-seated valves make filling and venting the system very precise. A low volume Quick-test hose, gauge adapter and process connection can be attached to the QTVC without thread sealant or a wrench.

Product Details

Reference RI03960873RQ

1 - QTVC Volume Controller
1 - LC10 Digital Pressure Gauge, 1000 psi (70 bar / 7 MPa), 1/4" Male NPT Bottom Connection (LC10-GP2M)
1 - 1/4" Female NPT x Female Quick-Test Reference Connection, Brass (QTHA-2FBA)
1 - 1/4" Male NPT x Male Quick-Test Process Connection, Brass (QTHA-2MB0)
1 - 1/4" Male NPT x Male Quick-Test Process Connection, Brass (QTHA-2MB0)
1 - Quick-Test 6900 psi Hose with Brass Hose Ends, 6 ft. long (QTQT-HOS-6ft)
1 - Quick-Test 6900 psi Hose with Brass Hose Ends, 3 ft. long (QTQT-HOS-3ft)
1 - USB-A to Micro USB-B Cable, 2 m long (D-000040)

Product Features:

Connects to and calibrates both very low or high pressure instrumentation using included pressure gauge
Lightweight, compact unit equipped with fill, balance and vent valves
Fine adjustment piston precisely controls pressure at 0.03 psi (2 mbar), or 3000 psi (210 bar), or any range in between
Design includes convenient carrying handle and Quick-test System outlet connections
Hose, gauge adapter and process connection can be attached without thread sealant or a wrench
Soft-seated valves make filling and venting the system very precise
Included stand allows for laboratory or table top use
Pressure Reference: LC10 pressure gauge, 1000 psi (70 bar / 7 MPa), 1/4" male NPT bottom connection
Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
Process Connection 1: 1/4" male NPT x male Quick-test, no check-valve, brass
Process Connection 2: 1/4" male NPT x male Quick-test, no check-valve, brass
Hose 1: Quick-test 6900 psi hose with brass ends, 6 ft. long
Hose 2: Quick-test 6900 psi hose with brass ends, 3 ft. long
Max Pressure: 3000 psi (200 bar / 20 MPa)
Max Vacuum: 10 InHg (33.9 kPa)
Materials: Anodized Aluminum, Brass, Powder Coated Steel, Stainless Steel
Seal Materials: Buna-N, Delrin, Teflon
Inlet Port: Male Quick-test
Outlet Port: Male Quick-test, Male Quick-test with cap and chain
Pressure Media: Nitrogen, inert gas
Min Operating Temperature: 0 °F (-18 °C)
Max Operating Temperature: 130 °F (54 °C)
Fine Adjustment Resolution: 0.0005 psi
Media Compatibility: Air, Inert Gas, Natural Gas
Dimensions (L x W x H): 6.8 x 8.5 x 6.6 in. (17 x 22 x 18 cm)
Weight: 3.70 lbs (1.68 kg)
