Phase II UTG-2675

Name: Phase II UTG-2675
Brand: Phase II
SKU: PI01175609PI
Price: 1516.00 USD
Availability: InStock

Reference PI01175609PI

Brand Phase II

Ultrasonic Thickness Gauge, for Ultra Thin Material down to 0.006 in., Thru Coating Capability

$1,516

Quantity

Description

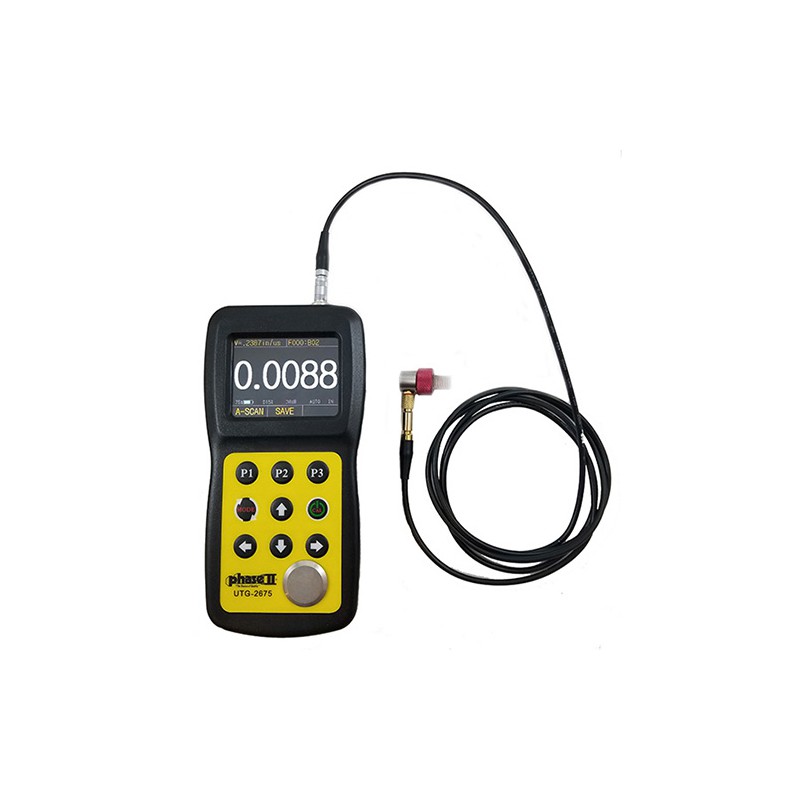

The Phase II UTG2675 Ultrasonic Thickness Gauge, for Ultra Thin Material down to 0.006 in., Thru Coating Capability is a simple to use, highly accurate, hand-held Ultrasonic Thickness Gauge with the ability to measure ultra-thin materials in super high resolution. Utilizing it's state of the art microprocessor and ultrasonic technology, the UTG-2675 offers many outstanding features such as quick scan and extended memory. It features reliable and stable readings, standard or dual element measuring modes, convenient data display (in both millimeters and inches), high resolution .0001 in. (0.001mm), ease of operation, and low power consumption (two AA batteries).

Product Details

Reference PI01175609PI

1 - UTG-2675 Ultrasonic Thickness Gauge
1 - Certificate of Calibration
1 - Operation Manual
1 - Custom Carry Case

Product Features:

Thru-Coating Capability
Live A Scan, Timed B-Scan
Ultra-High Resolution: 0.0001 in.
Large Data Memory Capacity: Stores 100,000 thickness values and 1000 wave-forms
Display type: 2.4QVGA(320×240)true color OLED screen, contrast 10000:1
Operating Principle: Adopts delay line probe ultrasonic measuring principle
Measuring Range: 0.2mm to 25.4mm(0.007874 in. to 1.00 in.)
Measuring Resolution: Selectable 0.001mm, 0.01mm or 0.1mm (selectable 0.0001, 0.001 in., 0.01 in.)
Units: Inch or Millimeter
Display Mode: Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction: Automatic
Update Rate: Selectable 4Hz, 8Hz, 16Hz per second
Material Velocity Range: 500-9999m/s, 0.0179-0.3937in/u
Languages: Chinese, English, French, Germany, Japanese
Alarm Settings: Minimum and Maximum alarms. Dynamic waveform color change on alarm
Power Requirements: 2 AA size batteries (not included)
Operating Time: 35+ hours
Instrument Shut-off: Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature: -10°C to +50°C (+10°F to +120°F); -20°C for special requirements
Size: 153mm × 76mm × 37mm(H×W×D)
Weight: 280g including batteries
