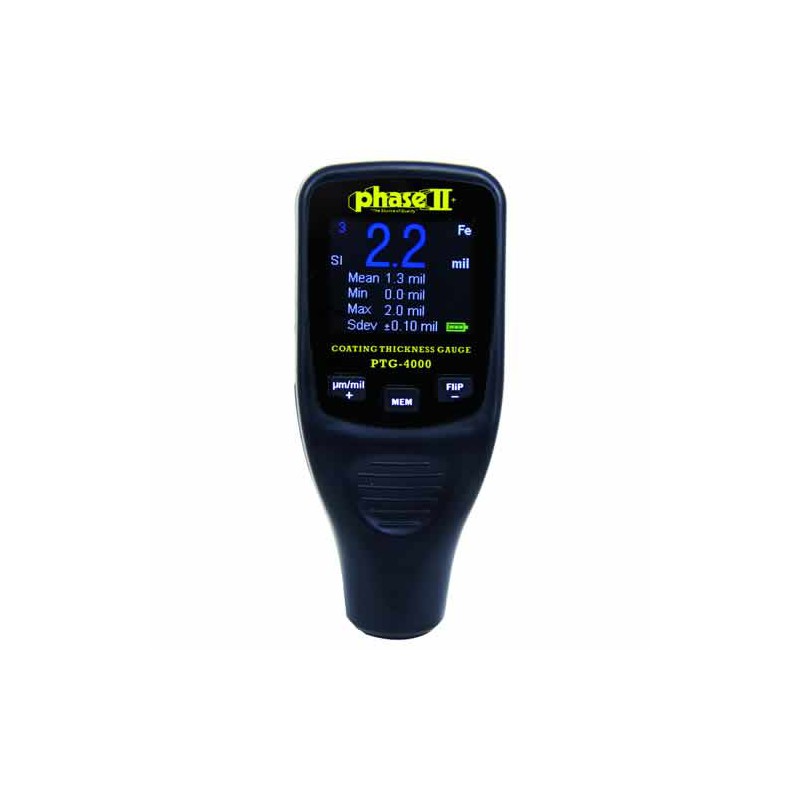

Phase II PTG-4000

Name: Phase II PTG-4000
Brand: Phase II
SKU: PI44115941PI
Price: 390.00 USD
Availability: InStock

Reference PI44115941PI

Brand Phase II

Coating Thickness Gauge with Color Flip Display

$390

Quantity

Description

The Phase II PTG4000 Coating Thickness Gauge with Color Flip Display can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. Testing performance is both non-destructive and extremely accurate.

With the Phase II PTG-4000 state-of-the-art coating thickness gage, you can easily detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe. The PTG-4000 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

Product Details

Reference PI44115941PI

2 - Substrate Samples (Steel and Aluminum)
4 - Calibrated Thickness Samples
1 - Carrying Case
2 - AAA Batteries
1 - User Manual

Product Features:

Measuring range: 0 to 1, 250um max. or 0 to 50 mils
Resolution: 1um/0.1mils(0 to 99um)
Accuracy: +/- 3% + 2 um ( +/-3%+0.1 mil )
Display: 3 digit color LCD
Single or continuous Measurement: Selectable
Min. measuring area: 0.2 in. x 0.2 in. (5mm x 5mm)
Min. radius of curvature: Convex: 0.12 in. (3mm)
Concave: 1.2 in. (30mm)
Min. substrate thickness - ferrous: 20 mils (0.5mm)
Min. substrate thickness - non-ferrous: 2 mils (50 um)
Max. surface temperature of test object: 302 °F (max. contact time is 2 seconds)
Power Source: Two AAA batteries
Performs two methods of calculating thickness measurement by utilizing characteristics of both eddy current and magnetic induction
Testing performance is both non-destructive and extremely accurate
State-of-the-art thickness gage can easily detect thickness of nonmagnetic coating on magnetic substrate (ferrous) or insulating coating on non-magnetic conductive substrate (non-ferrous) utilizing auto-detect, integrated probe
