Megger CFL510G

Name: Megger CFL510G
Brand: Megger
SKU: ME46159472MC
Price: 1955.00 USD
Availability: InStock

Reference ME46159472MC

Brand Megger

Handheld Time Domain Reflectometer, 30 ft. to 15,000 ft. Range, 0.3 ft. Min. Resolution

$1,955

Quantity

Description

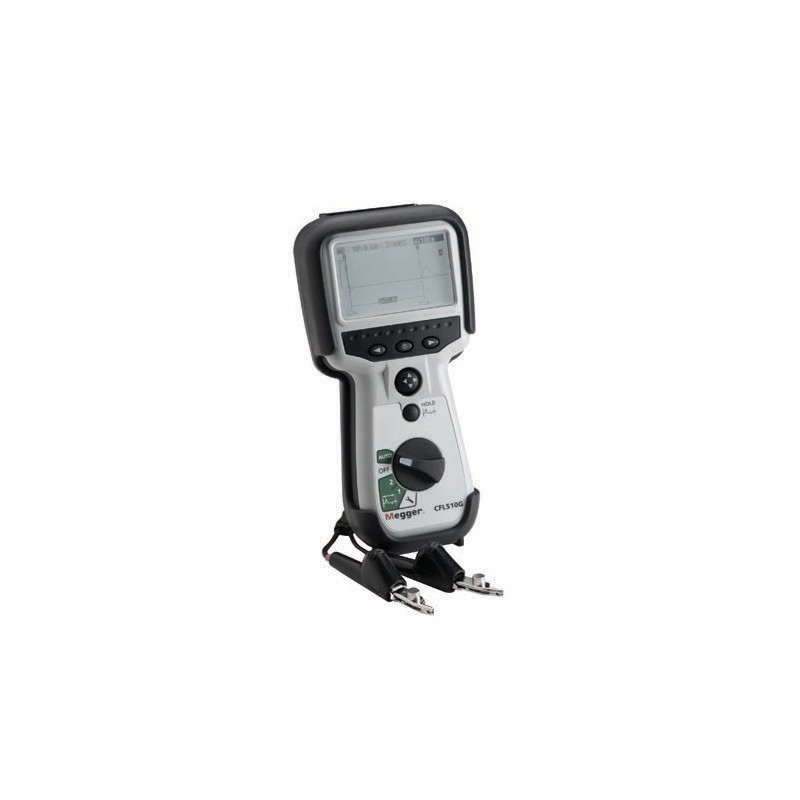

Megger CFL510G (1001-790) is a handheld, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1 m/0.3 ft. and a 5 km/15,000 ft. maximum range depending on velocity factor selected and cable type. Four output impedances (25, 50, 75, and 100 ohms) are available and a velocity factor between 0.2 and 0.99 will meet any cable test requirements.

The CFL510G has a simple selection option which, together with a four-way control switch, offers an intuitive operation for the user.

Applications

The CFL510G is primarily designed for linemen in both the communication and power industries. Specific capabilities include:

Telephony

The CFL510G provides fast and accurate results when uncovering transmission related problems. It is designed to be carried on a linesman's belt and used in the first line of defense when diagnosing and locating cable faults.

Specific line activities identified by this unit include:

Bridge taps and splices n Presence of water in the cable
Opens in tip, ring, or sheath
Shorts between tip, ring, and/or sheath
Capacitive networks
Load coils
Wet splices and high-resistance splices

CATV/Cellular

The CFL510G is ideal for testing the physical integrity of cables within a network. The unit is also capable of locating illegal cable taps.

Specific cable conditions identified include:

Bends or crimps in the cable
Cuts or shorts in the cable
Taps and splits
Water saturation

Power

The CFL510G is an ideal tool for identifying faults on secondary power cables. This unit identifies:

Burnouts in aluminum conductors
Good splices, wet splices, and high-resistance splices
Shorts between phases

Product Details

Reference ME46159472MC

1 - CFL510G Handheld TDR (1001-790)
1 - Miniature Clip Test Lead Set (6231-652)
1 - Bed of Nails Test Lead Set (6231-653)
1 - Socket BNC to 2x4mm, 50 Ohm (25965-154)
1 - Hard Carrying Case (5410-420)
1 - User Guide CD

Product Features:

Designed for use on all metallic cable pairs
AUTO selection option ensures effective selection of parameters and rapid results
Dual cursors provide complete flexibility and instant indication of distance between two points
2 ns pulse width virtually eliminates dead zones
Easy one-button press HOLD feature allows comparison between cable conditions
Ranges: 30 ft, 75 ft, 300 ft, 750 ft, 3000 ft, 7500 ft, and 15,000 ft
Minimum resolution of 0.3 ft. (0.1 m)
Auto-selected output impedance (between 25, 50, 75 and 100 ohms)
AUTO option for selecting gain and pulse for each range
Power blocking filter not required
May be used on telecom circuits or 150 V CATIV power circuits
Graphical monochrome LCD (256 x 128 pixels) equipped with adjustable display contrast and white-light backlight
Suitable for both indoor and outdoor use with IP54 rating
Distance displayed in meters or feet
Uses five AA batteries with up to 14 hours battery life
