Description

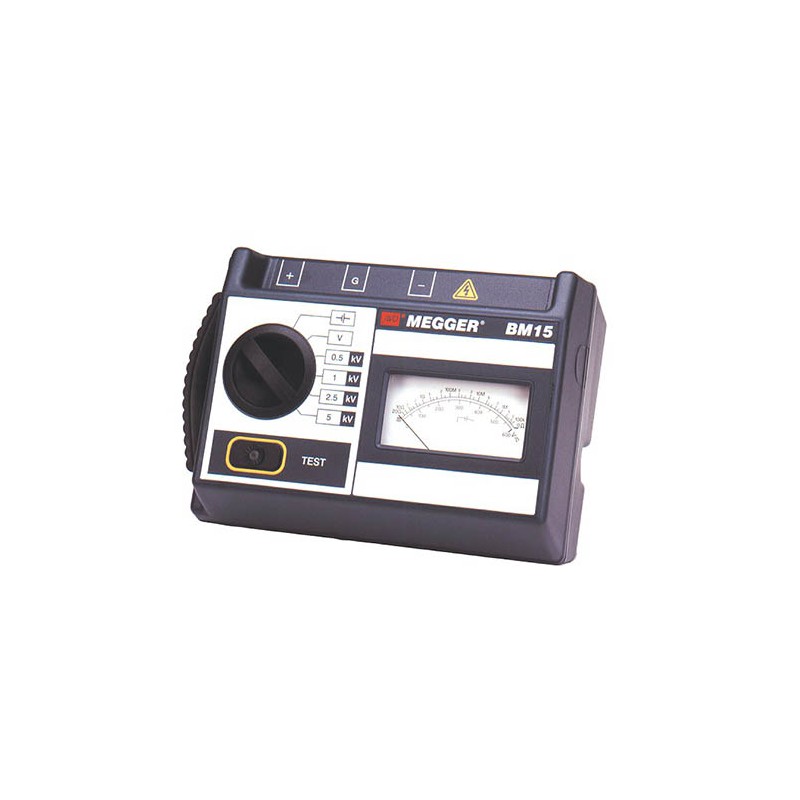

The Megger BM15 (6410-919) is a compact 5 kV insulation tester. It is very simple to use and provides a quick and accurate reading of insulation resistance. The instrument uses an analog display with a maximum reading of 20 Gigaohms. The BM15 is powered by eight LR6 (AA) alkaline cells. Four test voltages are available at 500 V, 1 kV, 2.5 kV and 5 kV.
A bezel on the BM15 allows a scale plate overlay to be added with pass/fail bands for go/no go testing. This is particularly useful for less experienced users and enables a rapid decision to be made.
The BM15 Insulation Tester is built into a rugged case designed for outdoor use. Safety terminals suitable for locking connectors are used for connection to the test piece. An automatic discharge circuit eliminates the voltage on capacitive loads after a test. The decaying voltage can also be viewed on the scale.
The BM15 meets the IEC1010 safety specification and EMC specifications, and it is fully CE marked.
Product Details
ME54829822MB
- 1 - BM15 Battery-Powered 5 kV Insulation Tester (6410-919)
- 1 - 3-Meter Lead Set with Medium-Size Insulated Clips (1002-531)
- 5 - Slide in Pass Band Overlay (6121-401)
- 5 - Test Record Card (210949)
- 1 - Carrying Case with Lead Storage (6420-117)
- 8 - 1.5V Alkaline AA Batteries
- 1 - User Guide
Product Features:
- Operates at four output test voltages to 5 kV
- Resilient mounted analog scale provides robustness
- Voltage range to 600 V indicates auto discharge
- Pass/fail overlays allow for rapid testing
- Single scale for insulation values helps prevent operator error
- Powered by eight AA batteries
- Unique scale overlay for pass/fail bands
- Range down to 100 kiloohms ideal for go/no go testing
- Safety recessed terminals and long connectors
- Light weight and rugged construction
- CE marked and meets IEC1010 safety specification
