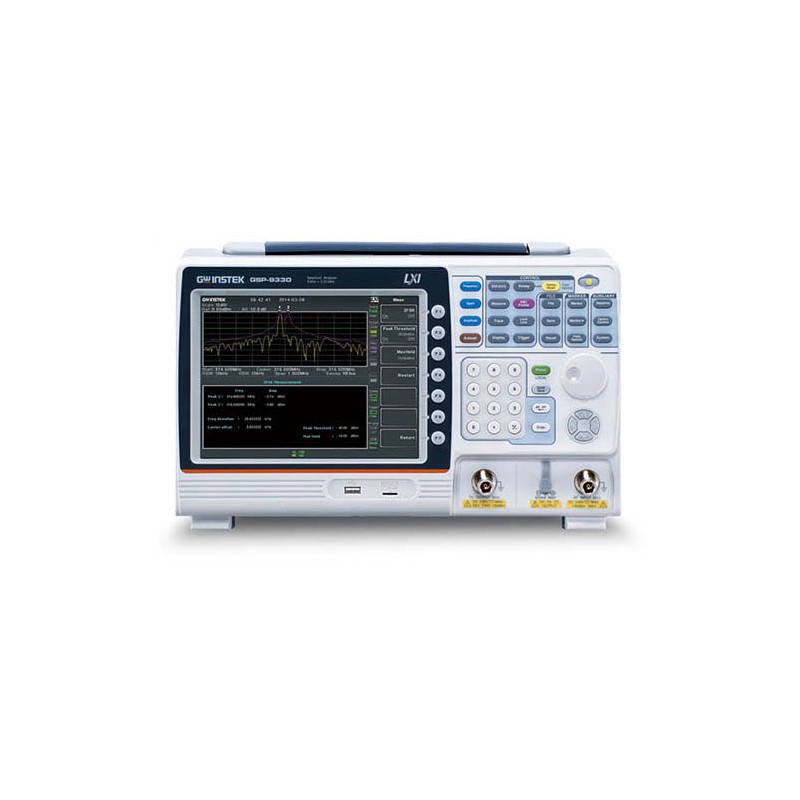

Instek GSP-9330TG

Product Features:

• Built-in Tracking Generator
• Fastest sweep speed up to 204 s
• Frequency Range : 9 kHz ~ 3.25 GHz
• Support modulation signal analysis
• 2FSK digital signal analysis
• ASK/FSK digital signals demodulation and analysis
• AM/FM analog signals demodulation and analysis
• Complete EMC pretest solution
• EMI Detect mode: Quasi-Peak, Average
• EMI Filter(-6dB): 200 Hz, 9 kHz, 120 kHz, 1MHz
• Dedicated EMC function key

Applicable to Tests and Analysis for Various Signals:

• Signal channel analysis provides Channel Power, OCBW, ACPR, N-dB bandwidth, SEM
• CATV parameter tests focus on CNR, CSO, and CTB parameters
• Signal source's stability characteristics can be tested via Phase Noise and Phase Jitter
• Component's or system's linearity test can be confirmed by TOI and P1dB functions
• Other measurement applications include Harmonic, Frequency Counter, Time Domain Power, and Gated Sweep

Graphic Processing of Signal Monitor:

• Spectrogram traces changes of frequency and power vs. time
• Topographic uses color shade to show the probability distribution of signal appearance
• Split-Window allows independent observation and settings for spectrum with different frequency bandwidths

Features for Production Line Applications:

• Users can set up automatic wake-up time to save time from manually setting
• Frequency stability of 0.025 ppm allows GSP-9330 to be stable quickly after powered up
• The sequence function exempts users from writing programs
• The limit line function determines whether the tested signal passes the test

User Friendly Design:

• Built-in Definition Help
• Status Icons
• Support five languages (English, Simplified Chinese, Traditional Chinese, Japanese, and Russian)
• Speed save function

Various Interface:

• Support USB Host, RS-232, LXI C (LAN Base), GPIB (option)
• Support USB Device, MicroSD to save files
• Ideal for TV Output's DVI interface

Software and Driver:

• SpectrumShot PC Software - EMC/Remote Control Mode
• IVI Driver (It needs NI VISA)
• Android App – GSP-9330 Remote Control

Various Augmenting Options:

• Tracking Generator analyzes scalar network analysis and P1dB point measurements
• Battery module and dedicated carrying case are ideal for Open Site operations
• GKT-008 near field probe set conducts EMI Pretest
• GLN-5040A/GIT-5060 conducts EMI Conduction tests

Applications:

• For the Quick Check and Analysis of Spectral Characteristic
• EMI Pre-compliance Testing
• Analyze ASK, FSK, AM, FM Signal Characteristics
• Monitor Satellite Uplink Signals From Satellite Uplink Truck
• Test Systems That Require a Very Compact Instrument
• Measure the Frequency Response of Cable, Filter and Amplifier
• Consumer Electronics
• Service and Maintenance
• Universities
• Graduate Schools
• Military Industries
• Automotive Electronics
• Telecom and communications Industries
• Distributors for RF-Instruments Instrument leasing Companies
