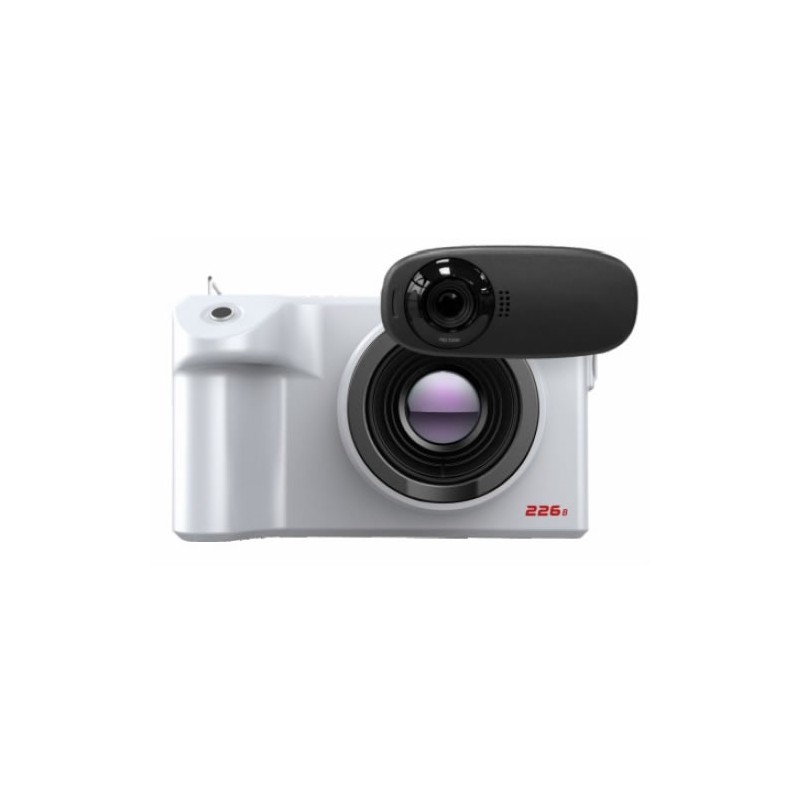

Fotric 226B

Name: Fotric 226B
Brand: Fotric
SKU: FO88609113F2
Price: 3902.00 USD
Availability: InStock

Reference FO88609113F2

Brand Fotric

Group Temperature Screening Infrared Thermal Imager with AI Facial Detection, 28° Lens, 384 x 288 Pixels

$3,902

Quantity

Description

The FOTRIC 226B Auto Face AI Infrared Thermal Imager operates AI face detection module, automatically locking each individual face for temperature measurement, intelligently shielding high-temperature sources from other faces in the scene. The 226B also has a built-in body temperature calibration algorithm, which automatically collects face temperatures in different scenarios for self-learning, and adjusts the body temperature alarm threshold in real time by adapting to ambient temperature changes, preventing false alarms from people who report abnormal body temperature due to morning or nighttime temperature differences. During the test process, FOTRIC 226B can automatically count the number of personnel and the number of suspected abnormal body temperature alarms for epidemic prevention and control. When an abnormal temperature is detected in a person, the 226B will automatically emit an alert, and the facial recognition frame will be immediately displayed in red accordingly, for a rapid on-site identification. When the alarm is triggered by an abnormal body temperature, the imager will automatically capture the photo of the detected person for further statistics and analysis.

Product Details

Reference FO88609113F2

1 - Standard Lens
1 - DC Adapter
1 - 3m USB Cord
1 - 10m USB Extension Cord
1 - Calibration Certificate
1 - Warranty Card

Product Features:

Performs quick temperature screening in areas with high flow of human traffic
Built-in AI facial detection module can screen entire groups of people simultaneously
Fast and easy to deploy with simple plug and play installation
Carries out professional thermography with no training required
Meets social distancing guidelines with contactless long-distance screening that keeps user and operator safe
Automatically detects and locks frame with dynamic temperature tag onto face
Provides visual alarm by turning green face frames to red when high body temperature is detected
Audible voice or ring alarm enables operator to make rapid decisions
Intelligent self-calibration function ensures 24/7 stable accuracy regardless of environmental conditions
Prevents false alarms by intelligently blocking non-facial high temperature sources, such as a hot mug
Automatically creates test statistics, archiving normal and abnormal readings separately for easy tracking
Produces automatic snapshot of people with abnormal temperature for further analysis

Specifications:

IR resolution: 384 x 288 pixels
Thermal sensitivity (NETD): <0.05°C @ 30°C
Field of view (FOV): 28°H x 21°V
Detector type: Polysilicon-FPA, uncooled microbolometer, 17 μm, spectral range 8 - 14 μm
Frame rate: 30 Hz
Temperature range: 68°F to 140°F (20°C to 60°C)
Temperature stability: ±0.5°C (±0.2°C with optional blackbody)
AI face detection: Dual light detection (visible light and infrared thermal)
AI body temperature algorithm: Calibrate alarm thresholds in real time based on ambient temperature
Shooting mode: Automatic abnormal temperature snapshot or manual shooting
Alarm function: Dual color alarm and sound alarm
Color Palettes: Black-White/Iron/Rainbow
Image format: Standard JPG with temperature data
Interface connection: USB
Software features:
- WLIR Face AI Infrared Thermal Software
- WLIR-IR adds Modbus function for integration or control of other automation devices
Charging system: DC 12V Charger
Battery Life: 10 hours
Dimensions: (L x H x W): 3.8 x 5.7 x 3.7 in. (97 x 145 x 93.5 mm)
Tripod mounting: UNC 1/4 in. - 20
