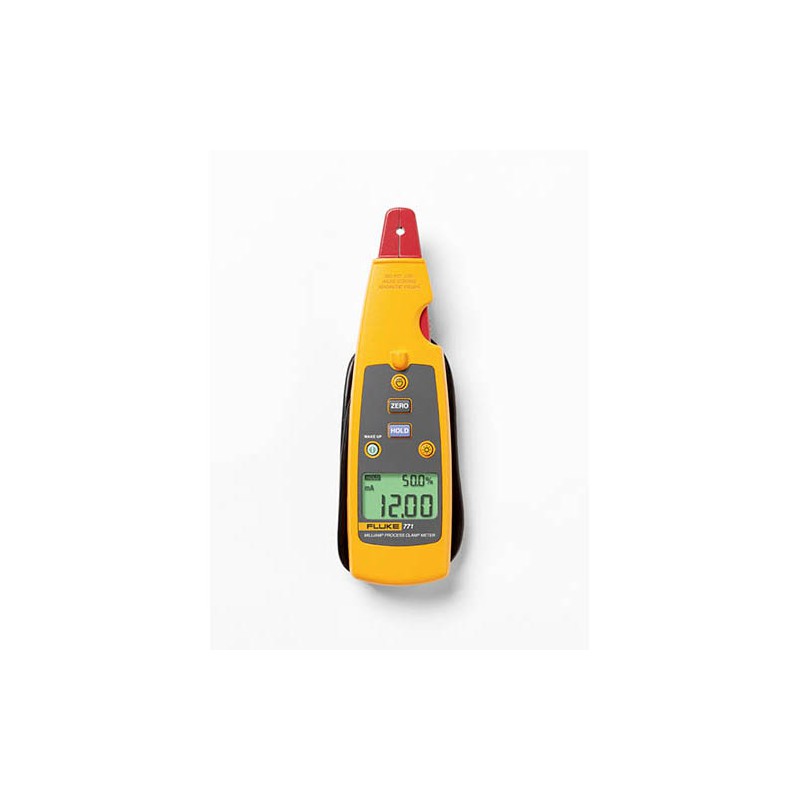

Fluke 771

Name: Fluke 771
Brand: Fluke
SKU: FL53022673F7
Price: 563.00 USD
Availability: InStock

Reference FL53022673F7

Brand Fluke

Milliamp Process Clamp Meter, 4-20 mA

$563

Quantity

Description

The Fluke 771 Milliamp Process Clamp Meter, 4-20 mA removes the need to lift a wire from a terminal (break the loop) to measure 4-20 mA, which has a direct impact on your maintenance time. With the 771, there is no need to call a control room to override the control of a process loop; it can save you time when testing analog I/O on a PLC if you do not need to check measurements on a console. In addition, the 771 can impact your overall cost by eliminating catastrophic plant outage caused by accidentally opening a critical loop.

Product Details

Reference FL53022673F7

2 - AA Batteries
1 - Soft Carrying Case
1 - User Manual

Product Features:

Measure mA signals for PLC and control system analog I/O
Measure 4 to 20 mA output signals from transmitters without breaking loop
0.2 % accuracy
Resolution and sensitivity to 0.01mA
Hold function captures and displays changing measurements
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Illuminates hard to see wires in dark enclosures
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50mA signals in older control systems using the 99.9mA range
Automatic power off after 15 minutes and 2 minute automatic off for backlight and spotlight
