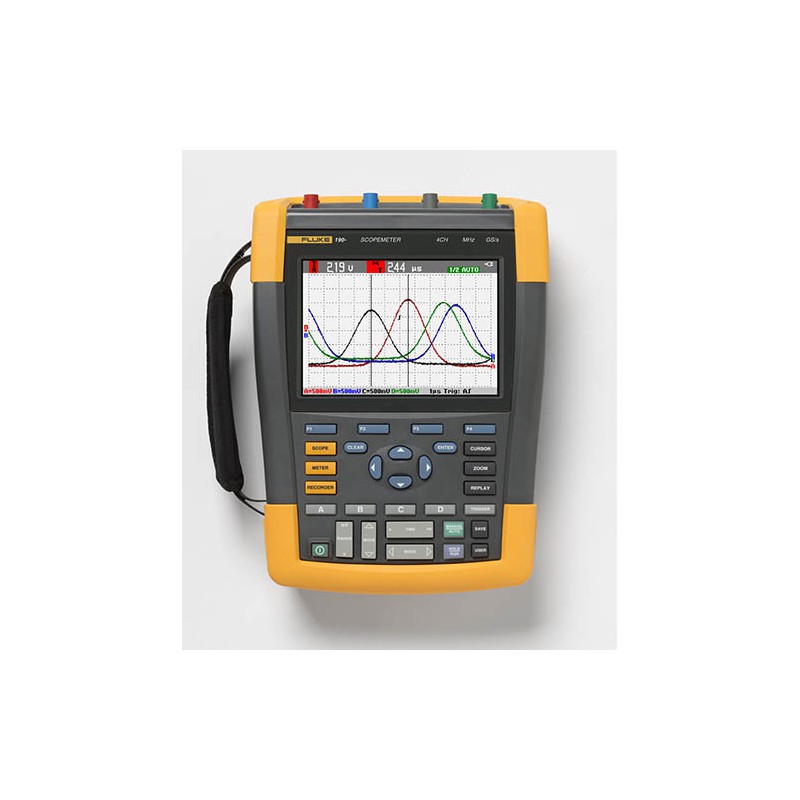

Fluke 190-504/UN/S

FL07519720F1
Fluke

500 MHz, 4-Channel, 5 GS/s Color ScopeMeter Portable Oscilloscope with Built-in Digital Multimeter, Model BC190/808 and Accessories

$5,866
Quantity

Description

The Fluke 190504UN 500 MHz, 4-Channel, 5 GS/s Color ScopeMeter Portable Oscilloscope with Built-in Digital Multimeter and Model BC190/808 combines an unprecedented level of performance, ruggedness, and portability into one tool. The 190-504/UN is safety rated CAT III 1000V/CAT IV 600V and features deep memory of up to 10,000 samples per channel. You can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. This test tool is hand-held, battery operated and designed to meet the demands of field service professionals, such as plant maintenance engineers and technicians. This tough test tool goes into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

The Fluke 190-504/UN is the one test tool you will reach for to tackle just about any troubleshooting task. It includes a multimeter, TrendPlot and ScopeRecord roll paperless recorder modes, and hands-free operation with Connect-and-View triggering, and much more.

Product Details
FL07519720F1
  • 1 - Battery Pack (BP291)
  • 1 - Hang Strap
  • 1 - Universal Power Adapter (BC190/808)
  • 1 - USB Interface Cable for PC Connection (USB-A to Mini-USB-B)
  • 1 - Red 10:1 Voltage Probe, 500 MHz
  • 1 - Blue 10:1 Voltage Probe, 500 MHz
  • 1 - Gray 10:1 Voltage Probe, 500 MHz
  • 1 - Green 10:1 Voltage Probe, 500 MHz
  • 4 - Black Hook Clip for Probe Tips
  • 4 - Black Ground Lead with Mini Alligator Clips
  • 4 - Black Ground Spring for Probe Tips
  • 4 - Black Insulation Sleeves
  • 1 - 50 Ohm (1W) Terminator
  • 1 - Red and Black Test Lead Set with Test Pins
  • 1 - FlukeView ScopeMeter Software for Windows
  • 1 - Hard Carrying Case
  • 1 - User Manual and Safety Information

Product Features:

  • Four electrically isolated inputs
  • CAT III 1000V/CAT IV 600V safety rated
  • Bandwidth: 500 MHz
  • Maximum real-time sample rate (sampled simultaneously): 5 GS/s for each channel
  • Deep memory: 10,000 samples per channel waveform capture; zoom in on details
  • Dedicated 999-count digital multimeter
  • Four meter measurements via scope BNC inputs in four-channel models
  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Li-Ion battery for extended operating timespan: Up to 7 hours operation
  • Charge spare battery using optional
  • Easy-access battery door makes it easy to swap batteries
  • Handy slot to tether and lock down oscilloscope while unattended using standard Kensington lock
