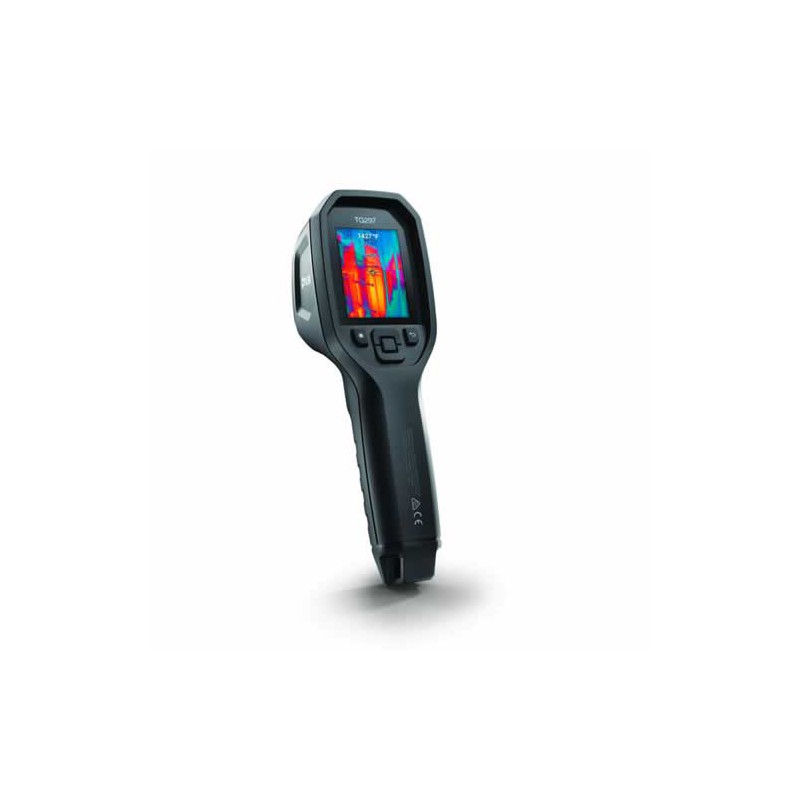

FLIR TG297

Name: FLIR TG297
Brand: Flir
SKU: FL47284044FT
Price: 842.00 USD
Availability: InStock

Reference FL47284044FT

Brand Flir

Industrial High Temperature Spot Thermal Camera, 160 x 120, -13°F to 1886°F, 9Hz

$842

Quantity

Description

FLIR TG297 Industrial High Temperature Spot Thermal Camera, 160 x 120, -13°F to 1886°F, 9Hz combines accurate measurement with the ability to image temperatures as high as 1030°C (1886°F) in a one-of-a-kind diagnostic tool. Now you can both see and measure the source of common issues involving electrical and mechanical systems, diagnose breakdowns, and verify manufacturing processes. Examine anything from a furnace to a forge using thermal enhanced with FLIR MSX® (Multi-Spectral Dynamic Imaging), which improves image clarity by embossing visual scene details onto full thermal images. This can provide the perspective and context you need to accurately target potential faults, troubleshoot repairs, and monitor processes. Record images to assure team members that machinery and systems are functioning safely and at peak efficiency. With a simple user interface, Bluetooth® connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, FLIR TG297 is ready to go out of the box.

MSX Technology

FLIR TG297 with Multi-Spectral Dynamic Imaging (MSX) Technology adds visible spectrum definition to IR images by detecting the edges of objects. Text becomes clearly visible so that you can read a label or identifier within the IR image. This exclusive function provides extraordinary thermal detail that instantly highlights and orients problem locations and eliminates the need to refer back to a visual image for detail.

Product Details

Reference FL47284044FT

1 - Industrial High Temperature Spot Thermal Camera (TG297)
1 - Wrist Strap lanyard
1 - USB Cable
1 - Pouch
1 - Thermocouple
1 - User Manual

Product Features:

Outfit your toolbox with this combination non-contact temperature measurement and thermal imaging camera
Experience difference of true 160 × 120 IR pixel imager (19,200 pixels)
High-temperature filter allows camera to measure and image temperatures up to 1030°C (1886°F)
Work from safe distances while scanning high-temperature objects thanks to the 30:1 spot ratio
Identify exact areas you are measuring using bullseye laser pointer
See details needed to troubleshoot faults and gauge their severity
Diagnose problems faster with FLIR-patented MSX image enhancement
Display and capture thermal or visual images with temperature readings
Compare before-and-after stored images to demonstrate problems and solutions
View thermal images in your preferred color palette on bright 2.4-inch color display
Take TG297 anywhere thanks to its portable design and protective IP54 enclosure
Work safely and worry-free knowing that thermal imager can withstand 2-meter drop
Peer into dark and hard-to-reach areas with bright LED flashlight
Find this compact, durable imager in crowded tool bag easily, thanks to ergonomic handle design
Rely on security of world-class FLIR 2-10 warranty
Thermal sensitivity/NETD: <70 mK
Field of view (FOV): 57° × 44°
Distance to spot ratio: 30:1
Image frequency: aprrox. 9 Hz (8.7 Hz)
Detector pitch: 12 μm
Battery type: Rechargeable 3.7 V Li-ion battery
Battery operating time: 5 hrs scanning
Battery charging time: 4 hrs to 90%
