Industrial Acoustic Imaging Camera

$19,125

Quantity

Description

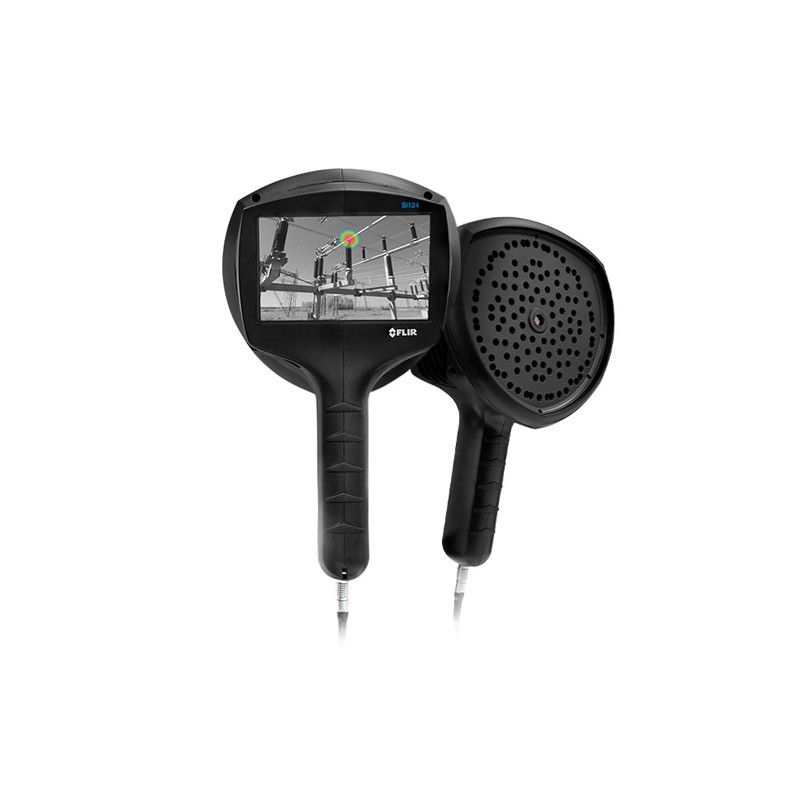

FLIR Si124 Industrial Acoustic Imaging Camera is an intelligent, easy-to-use imaging system designed to visually show pressurized leaks in compressed air systems and display partial discharge problems in high-voltage electrical systems. FLIR Si124 very lightweight, one-handed solution can help utility, manufacturing, and engineering professionals identify efficiency loss and potential failures up to 10 times faster than traditional methods. Built with 124 microphones and a frequency range that covers audible and ultrasound (2 kHz to 31 kHz), FLIR Si124 sees through background noise commonly found in industrial environments to produce precise acoustic imagery. The acoustic image is overlaid in real time on top of a digital camera picture, which allows the user to accurately pinpoint the source of the sound and classify problems. Equipped with the FLIR Acoustic Camera Viewer cloud service, this smart tool automatically saves images to the cloud after they are captured. Users can then access stored files for deeper analysis. Adopting the FLIR Si124 as part of a regular maintenance routine allows professionals to identify issues fast, helping utilities keep the power flowing and manufacturing operations going.

Product Details

Reference FL37421359FS

1 - Industrial Acoustic Imaging Camera (Si124)
1 - Battery, LiFePO 12 V 7 Ah, 84 Wh
1 - Battery Cable
1 - Battery Charger
1 - Battery Pouch
1 - Camera Handstrap
1 - Camera Pouch
1 - USB Memory Stick
1 - User Manual

Product Features:

Reduce electricity waste and optimize equipment performance
Pinpoint costly leaks in noisy industrial environments
Instantly view leak rate (l/min or CFM) and estimated yearly energy loss
Extend compressor life by eliminating wasted output
Minimize equipment failures and downtime that result from PD/corona issues
Classify partial discharge type (including surface discharge, floating discharge, and discharge into air) to improve reliability of electrical systems
Identify corona discharge, even in daytime hours, allowing quick replacement of defective components before catastrophic failures occur
Operate lightweight camera with one hand
Calculate critical decision-making data instantly with cloud analytics software
Upload, store, and back up data; create reports; and conduct deep analysis using FLIR Acoustic Camera Viewer cloud analytics
Quickly calculate estimated yearly energy costs caused by compressed air/vacuum leak
Determine if service or replacement is necessary by classifying PD/corona types instantly

Acoustic Specifications

Acoustic measurement: 124 low-noise MEMS microphones, real-time sound visualization
Sensitivity, accuracy: <0 dB
Dynamic range: >120 dB
Bandwidth: 2 kHz to 31 kHz, adjustable range
Distance: From 0.3 m (1.0 ft) up to 100 m (328 ft)
Compressor / Vacuum Leak Rates:
In typical industrial environment:
>0.032 l/min @ 3 bar from 3 m (9.8 ft)
>0.05 l/min @ 3 bar from 10 m (32.8 ft)
Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft)
Electrical discharge classification:
Discharge into air
Surface discharge
Floating discharge

User Interface

Display size: 5 in, 800 x 480
Display color: 24 bit RGB
Display brightness: 1000 cd/m2 (adjustable)
Input device: Resistive touchscreen
Power On indicator: Red LED
Video image resolution: 1640 x 1234
Video frame rate: 25 fps
Acoustic image frame rate: 30 fps
Zoom: 2x digital zoom

Communication and Data Storage

Wireless data transfer: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Storage, internal: 32 GB SD card, non-removable
Storage, external: 8 GB USB mass storage, provided with device
