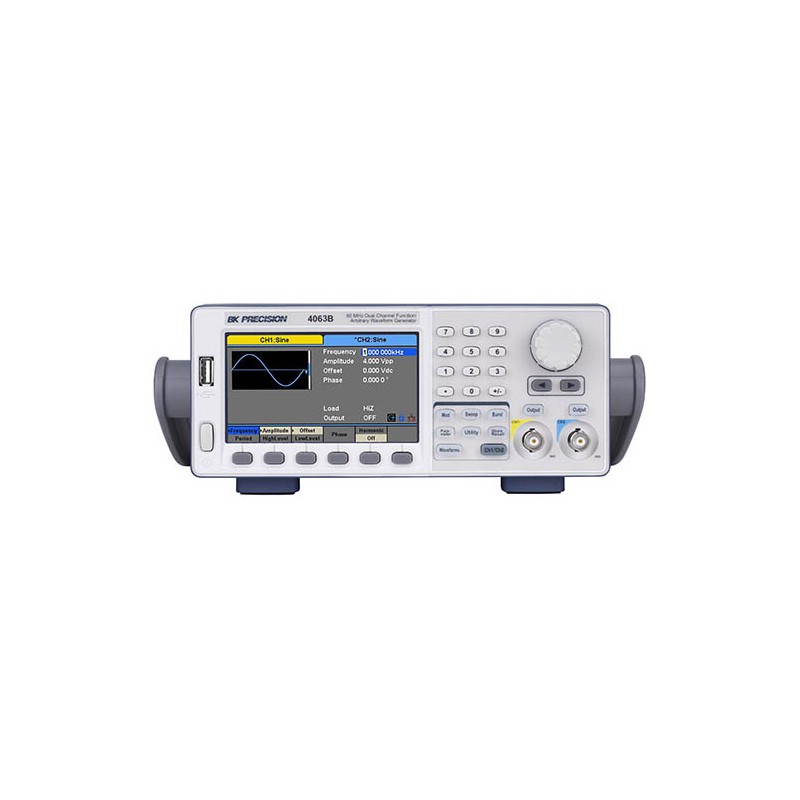

BK Precision 4063B

The BK Precision 4063B Dual Channel Function/Arbitrary Waveform Generator, 1 µHz to 80 MHz is capable of producing precise sine, square, triangle, pulse, and arbitrary waveforms. This model combines the cost saving benefits of both DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveform generation capabilities. The 4063B arbitrary waveform generator architecture can be toggled between conventional DDS or true arbitrary mode. Compared to DDS, true point-by-point AWG implementation offers improved signal integrity by producing lower jitter and less distortion. This model is capable of generating 16-bit waveforms up to 300 MSa/s in DDS or 75 MSa/s in true arbitrary mode. The intuitive touchscreen display simplifies control of many features including extensive waveform modulation schemes, linear/logarithmic sweep, burst mode, and variable DC offset. These generators provide system integrators with auxiliary triggering capabilities, and a 10 MHz reference clock for synchronizing multiple instruments. 196 built-in arbitrary waveforms offer a variety of arbitrary test signals for both simple and complex applications. Generate custom arbitrary waveforms and download them to the instrument using the included application software. Alternatively, use the included LabVIEW drivers to load .csv or .txt waveform data files directly into the generator's internal memory.
