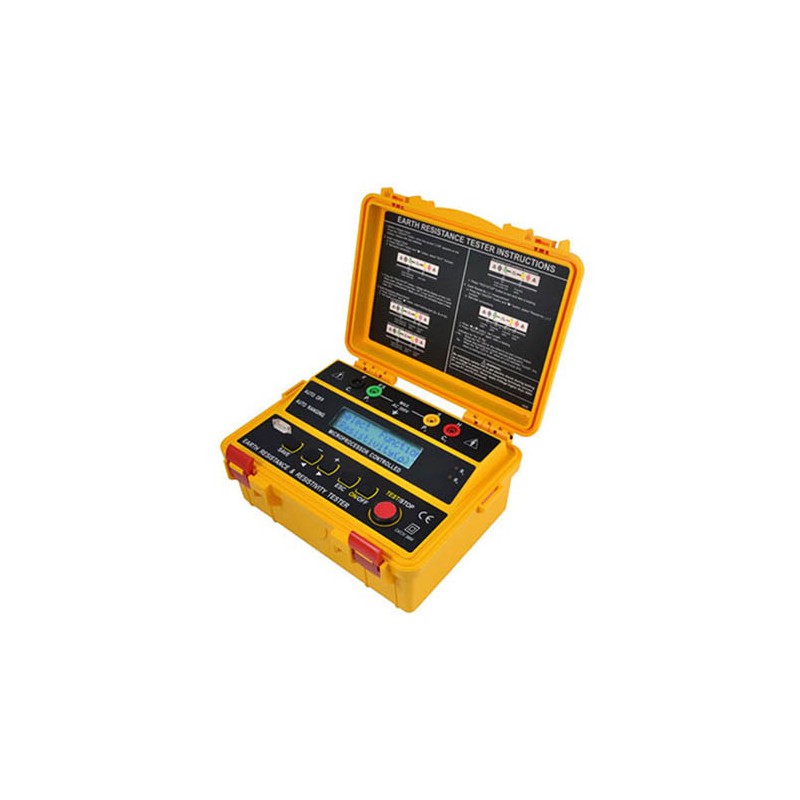

Besantek BST-ET104

Name: Besantek BST-ET104
Brand: Besantek
SKU: BE60087906BB
Price: 503.00 USD
Availability: InStock

Reference BE60087906BB

Brand Besantek

4-Wire Ground Resistance Tester with Resistivity Test, USB to RS-232 Data Transmission

$503

Quantity

Description

The BESANTEK BSTET104 4-Wire Ground Resistance Tester with Resistivity Test, USB to RS-232 Data Transmission is designed to measure the earth resistance, earth voltage, and earth resistivity. This model offers a USB to RS-232 data connection to facilitate data export to a PC.

Product Details

Reference BE60087906BB

8 - 1.5V AA Batteries
4 - Auxiliary Earth Spikes
1 - Set of Red Test Leads (15m)
1 - Set of Black Test Leads (10m)
1 - Set of Yellow Test Leads (10m)
1 - Set of Green Test Leads (5m)
1 - Shoulder Belt
1 - Carrying Case
1 - Data Transmission Cable
1 - CD with Software

Product Features:

Earth Resistance Measurement Ranges: 0~20Ohm, 0~200Ohm, 0~2kOhm
Earth Voltage Measurement Ranges: 0~300V AC
Earth Resistivity (ρ=2πLR) Measurement Ranges: 0.06~6.28 kOhm.m, 0.62~62.8 kOhm.m, 6.28~628 kOhm.m
Earth Resistance Resolution: 0~20Ohm: 0.01Ohm, 0~200Ohm: 0.1Ohm, 0~2kOhm: 1Ohm
Microprocessor controlled
Automatic C spike check
Automatic P spike check
2-wire test, 3-wire test and 4-wire test
200 measurement results can be saved in the memory and recalled on the display
Interval between auxiliary earth spikes is 1.0~50.0m
Optical USB to RS-232 data transmission
Stored data can be transferred to a PC
2 optical LEDs are built-in for data transfer
LCD display
Auto ranging
Auto power off
Data hold
