Amprobe AT-6010

Name: Amprobe AT-6010
Brand: Amprobe
SKU: AM68796650AA
Price: 383.00 USD
Availability: InStock

Reference AM68796650AA

Brand Amprobe

600 V AC/DC Advanced Wire Tracer Kit with 2.5 in. LCD Display

$383

Quantity

Description

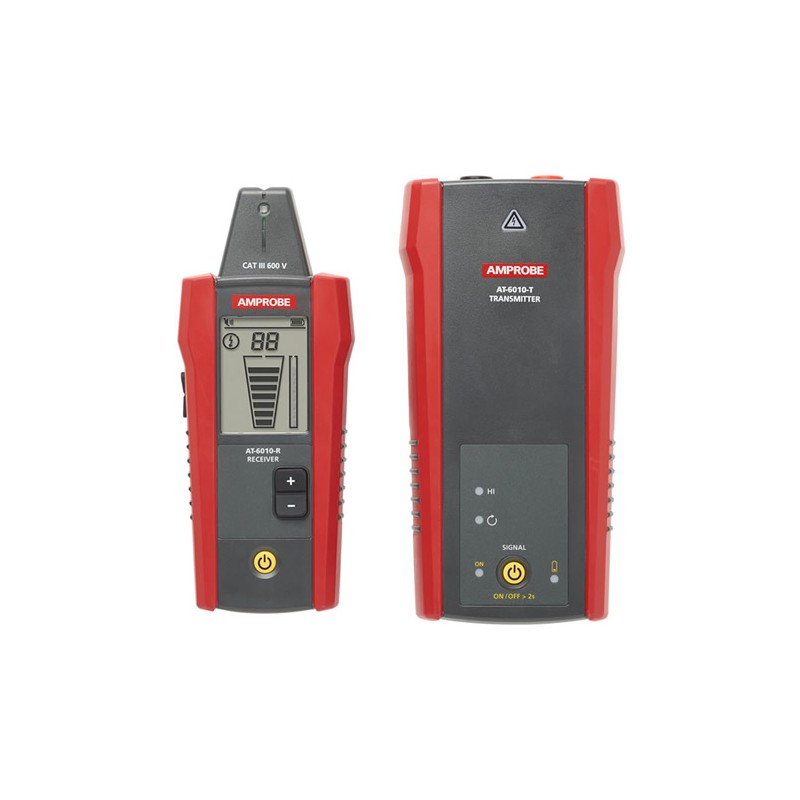

Amprobe AT-6010 Advanced Wire Tracer, it has never been easier and safer to locate Energized and De-energized wires, breakers and fuses. When the Transmitter is connected to the circuit, the Receiver easily detects the signal in the wires or cables behind walls, ceilings and floors. The Transmitter works on Energized and De-energized circuits up to 600 V AC/DC in Category I through Category III electrical environments, allowing for work directly on an energized circuit without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The complete AT-6010 kit features test leads and accessories.

Product Details

Reference AM68796650AA

1 - At-6010-R Receiver
1 - At-6010-T Transmitter
1 - Tl-6000-INTL Test Lead Accessory Kit (Includes: 2 x 1 m Test Leads (Red, Black), 1 x 7 m Test lead (Green), 2 x Alligator Clips (Red, Black), 2 x Outlet Blade Adapters (Red, Black), 2 x Outlet Round Adapters (Red, Black))
1 - Cc-6010 Soft Carrying Case
12 - 1.5 V AA (Iec Lr6) Batteries
1 - User Manual

Product Features:

Receiver/Tracer operating voltage: 0 to 600 V AC/DC
Receiver/Tracer operating frequency: Energized 6.25 kHz/De-Energized 32.768 kHz
Receiver/Tracer measurement category: CAT III 600 V
Tracer hazardous voltage detection: > 30 V AC/DC
Tracer current output of signal (typical):
- Energized circuit: HI mode: 60 mA RMS
- De-energized circuit: HI mode: 130 mA RMS
- Loop mode: 160 mA RMS
Tracer signal voltage output (nominal):
- De-energized circuit: HIGH: 33V RMS, 140 Vp-p
Receiver range detection (open air):
- Tip sensor (Energized):
  - Max distance via air: up to 20 ft (6.1 m)
  - Pinpointing: approx. 1.97 in (5 cm)
- Tip sensor (De-energized):
  - Max distance via air: up to 14.7 ft (4.5 m)
  - Pinpointing: approx. 1.97 in (5 cm)
Receiver display size: LCD 2.5 in (6.35 cm)
Power: 1.5 V AA Batteries
Finds shorts and opens
Transmitter "Loop" mode for closed loop de-energized circuits
Two frequency modes for optimal tracing in energized and de-energized circuits
Large LCD Receiver screen with two digit readout, bar graph and sound to easily determine wire location
Simple one button Transmitter operation
Compatible with the CT-400 Signal Clamp accessory (not included) for inducing tracing signal on cable when there is no access to bare conductors
