Ametek HK-1000  from Ametek
  • Ametek HK-1000  from Ametek

Ametek HK-1000

AM04394092AH
Ametek

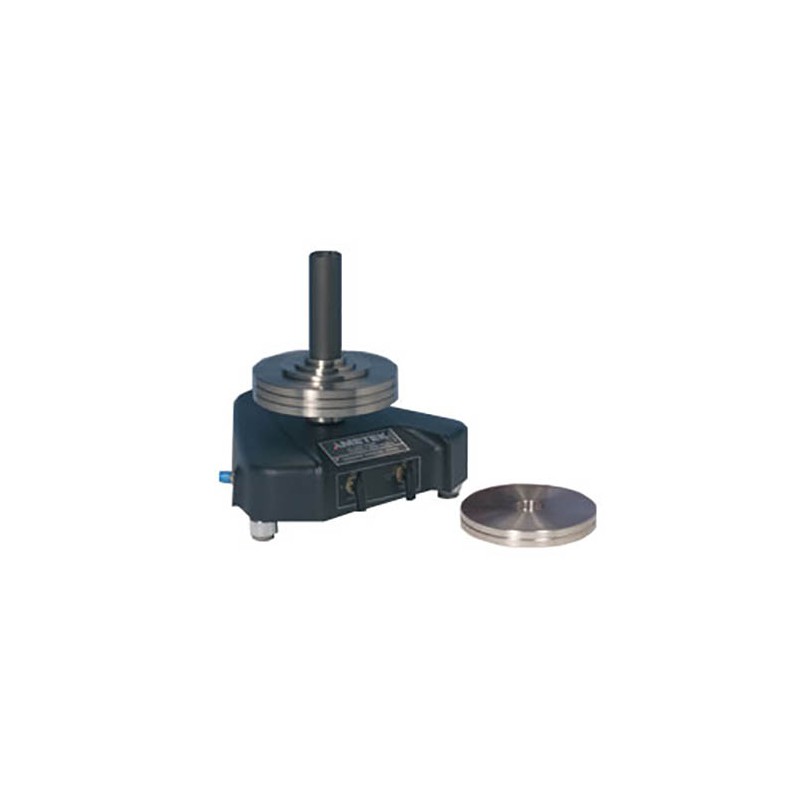

High Pressure Pneumatic Deadweight Tester, 10-1000 PSI, 0.025% Accuracy

$25,790
Quantity

Description

The Ametek HK1000 High Pressure Pneumatic Deadweight Tester, 10-1000 PSI, 0.025% Accuracy is engineered to offer user-friendly, safe operation. The easy-to-use primary standard provides reliable and accurate pressure measurement in a lab. This model offers accuracy to 0.025% of reading and a range of 10-1000 PSI. The HK1000 features a self-regulating design, that allows automatic stabilization of weights, eliminating the need to adjust input pressure. The tester utilizes a virtually frictionless ceramic ball floating on a layer of air within a stainless steel cylinder. The HK tester features a quick-leveling system for lab setup. Weights are located in foam-protective slots in the case. The setup for the HK1000 is completed by simply connecting two tubes; one for the supply and one for the unit-under-test, leveling the HK, and adding the appropriate weights. Operation is fast and efficient with no valves to adjust and no regulation needed between set points. Pressure regulators are not required if the air supply is within the tester's operational requirements.

Product Details
AM04394092AH
  • 1 - Tester Base with Case
  • 1 - Weight Set
  • 1 - Manual
  • 1 - NIST Traceable Certificate

Product Features:

  • Range: 10 to 1000 PSI
  • Accuracy: 0.025% of Indicated Pressure
  • Minimum 1 PSI Increments
  • Primary Pressure Standard, NIST Traceable
  • Calibrated to International Standard Gravity
  • Weight Carrier and Ball Output: 10 psi
  • Pressure Source: Nitrogen or Instrument/Shop air
  • Max Supply Pressure: 1500 psi/100 bar
  • Min Supply Pressure: 150 psi/10.3 bar
  • Rugged ceramic measuring ball
  • Overhung weight carrier reduces side thrust and friction
  • Quick-leveling system for field use
