Description

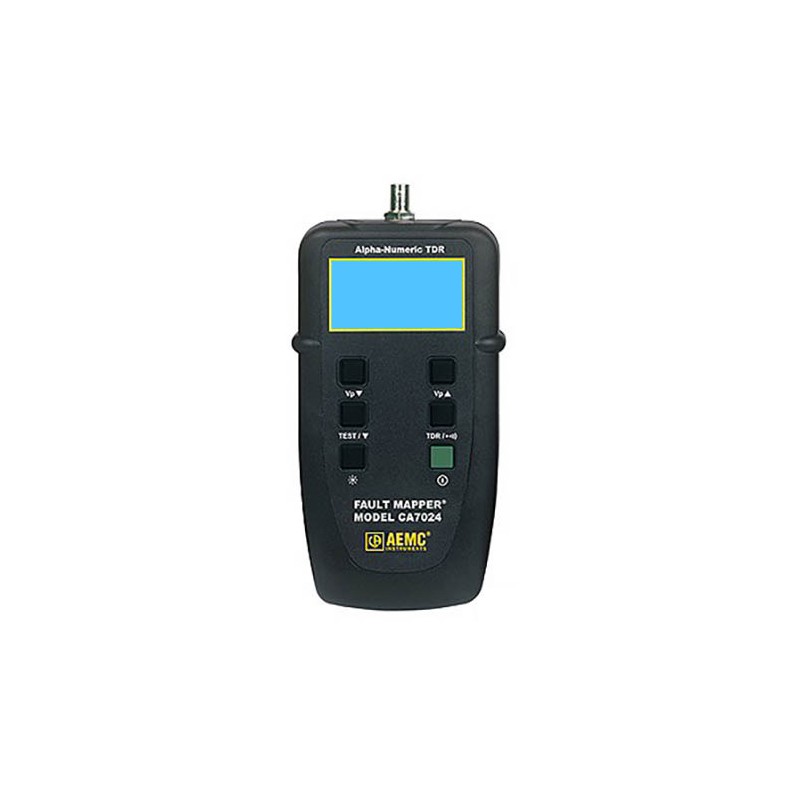

The Fault Mapper Model CA7024 is a hand-held, alphanumeric, TDR (Time Domain Reflectometer) Cable Length Meter and Fault Locator, designed to measure the length of electrical and communication cables. It can also indicate the distance to a fault in the cable (open or short), given access to only one end of a two or more conductor cable.
By incorporating fast-edge step TDR technology, the Model CA7024 measures cable length and indicates the distance to open or short circuit faults. to a range of 6000 ft (2000m), on virtually any type of cable. The Model CA7024 indicates the cable length or fault distance and description, alphanumerical on a 128 x 64 graphical LCD.
Product Details
AE46027195AC
- 4 - AA batteries
- 1 - 4mm color-coded banana plugs with alligator clips
- 1 - Soft Carrying Case
- 1 - Instruction Manual
Product Features:
- Hand-held Cable Length Meter and Fault Locator
- Detect opens and shorts and the distance to them from one end of the cable
- Measure cable length up to 6000 ft (2000m) in feet or meters
- Automatic cable impedance compensation
- Built-in library of most common cables and their Vp (Velocity of Propagation)
- Manual selection of Vp for all cables not found in library
- Vp setting displayed long with length and cable type (if in library)
- Built-in tone generator for tracing and locating cables
- Large high-visibility blue electroluminescent backlit display
- CE Mark
