Description

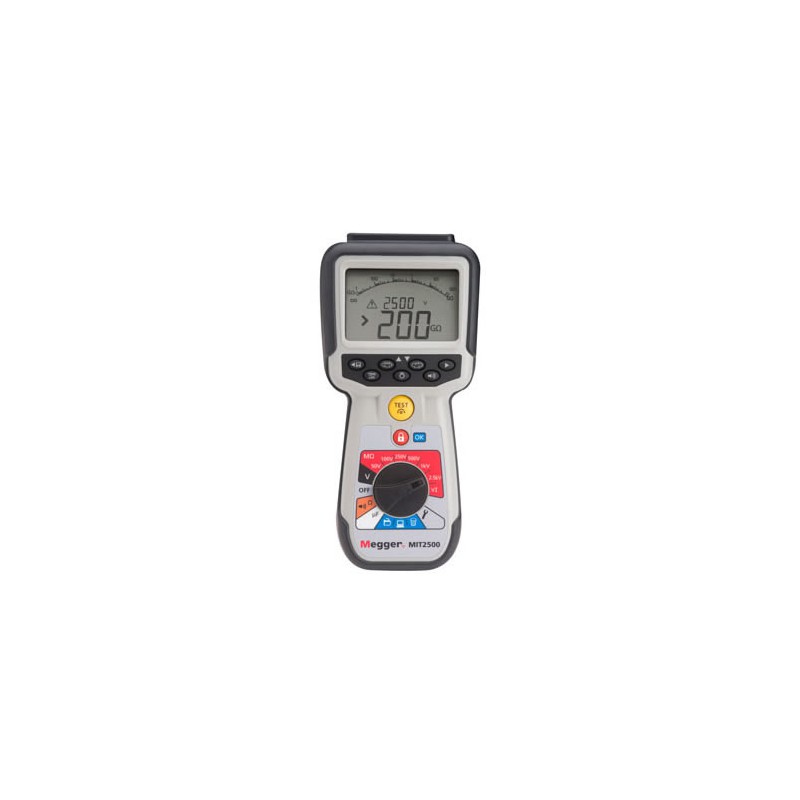

The Megger MIT2500 (1006-764) Insulation and Continuity Tester has been designed for motor and cable testing, specialist applications and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.
The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be "dialed in". This is supported by the test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under testing.
The MIT2500 uses a redesigned case, back-stand, and 6-cell battery compartment. The tester furthermore has an incorporated guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages. The MIT2500 is over-molded for increased protection and to achieve an IP54 weatherproof rating.
Product Details
ME19650199MM
- 1 - MIT2500 Insulation and Continuity Tester (1006-764)
- 1 - Set of 1 kV Silicone Test Leads with Probes and Clips (Red, Black, Blue)
- 1 - Set of 2.5 kV Silicone Test Leads with Clips (Red, Black, Blue)
- 1 - Owners Information CD
- 6 - AA Alkaline Batteries (1002-753)
- 1 - Hard Carrying Case (2006-649)
Product Features:
- Ideal tester for high voltage electrical and industrial applications
- Performs insulation resistance tests up to 2.5 kV with 200 Gigaohms maximum resistance
- Stabilized insulation test voltage remains within specification
- Guard terminal allows for high accuracy at higher voltages
- Adjustable insulation test voltage from 50 V to 2500 V
- Single range, faster continuity testing from 0.01 ohm to 1 Megaohm
- Provides clear readout on digital display with large characters and analog arc
- Offers PI, DAR, and timed test modes
- Detects live voltages and inhibits insulation testing above user-selected thresholds
- Buzzer limit alarms may be set for continuity and insulation tests
- Test lock function holds insulation test on continuously
- Rechargeable options for mains and car charging
- Suitable for use on CAT IV applications and supply voltages to 600 V
