AEMC 6472

Name: AEMC 6472
Brand: AEMC
SKU: AE70595207A6
Price: 2617.00 USD
Availability: InStock

Reference AE70595207A6

Brand AEMC

2-Point, 3-Point and 4-Point Digital Ground Resistance Tester, Optional 2-Clamp Measurement

$2,617

Quantity

Description

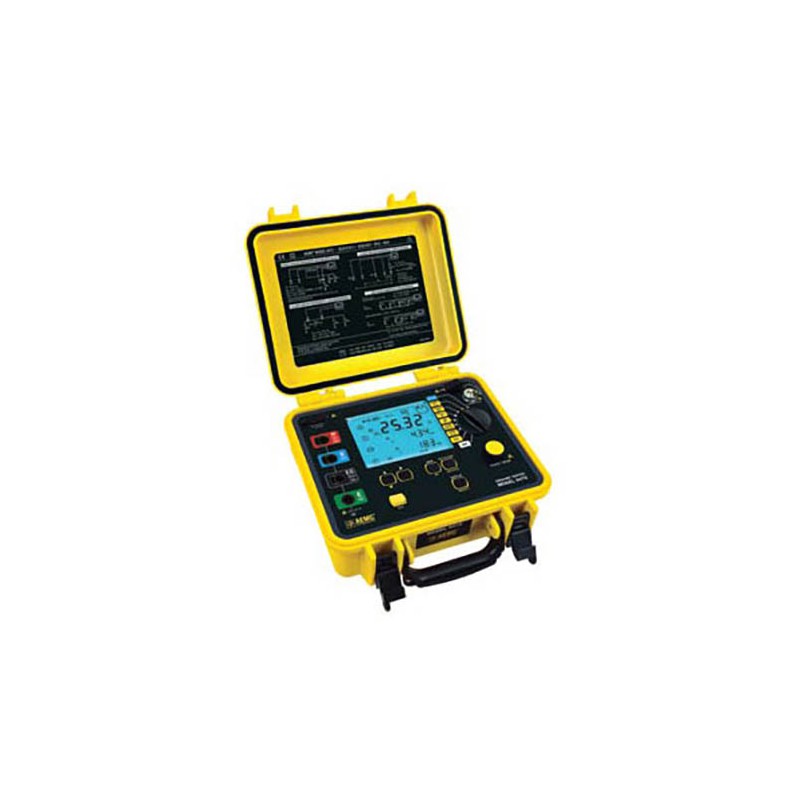

The AEMC Digital Ground Resistance Tester Model 6472 (2135.51) is a portable measurement instrument designed to measure Bond Resistance, Ground Resistance (with and without clamps), Soil Resistivity, Earth Coupling, Step & Touch Potential.

The Model 6472 measures from 0.01 to 99.99kΩ and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current. The adjustable test frequency (either manual or automatic) from 40 to 5078Hz test voltage provides rejection of high levels of interference, allowing it to be used under difficult conditions such as the presence of high stray currents that normally affect accuracy. Up to 512 test results can be stored in internal memory for later recall to the display or downloaded to a PC using DataView® software (included) for Automatic Report Generation, Automatic Fall-of-Potential Plot Generation, Frequency/Resistance Plots and much more.

When used in combination with the GroundFlex® Adapter Model 6474 (factory supplied product only), Power Transmission Tower and Tower Leg Ground Resistance testing is also available.

Product Details

Reference AE70595207A6

1 - Carrying bag
1 - 110/240V power adapter with US power cord
1 - Optical USB cable
1 - Rechargeable NiMH battery pack
1 - USB stick with DataView software, ground tester workbook and user manual

Product Features:

Ground Integrity Measurement
Ground Resistance testing using the 2 clamp method (no auxiliary rods needed) using optional current probes
2- and 4-Wire Bond Resistance/Continuity Measurement (DC Resistance) with automatic polarity reversal
3-Point Fall-of-Potential measurement with manual or automatic frequency selection
4-Point soil resistivity measurement with automatic calculation of Rho (ρ) and user selection of the Wenner or Schlumberger test method
3-Point Earth coupling measurement
Ground Resistance (3-Pole or 4-Pole)
Ground Coupling Resistance
Selective Resistance
Ground Potential
Ground Resistance with 2 clamps (no auxiliary rods)
Test Voltage 16 or 32V; 41 to 5078Hz
Two additional test voltages of 10 and 60 Volts can be manually selected
Measures Ground Impedance at frequencies up to 5kHz to test lightning strike protection
Manual and automatic frequency scan from 41 to 5078Hz for optimum test accuracy in electrically noisy environments
Selectable test voltage of 16 or 32V up to 250mA of test current
Auto Power OFF feature
Automatic recognition of all electrode connections and their resistance value
Stores up to 512 complete test results
Display with automatic backlight when entering a function
Optically isolated USB communication cable included
Automatic report generation including the fall of potential plot
Rechargeable NiMH batteries from wall charger or vehicle power
Rugged dustproof and rainproof field case - IP53 rated in closed position
Includes DataView software for set up, data storage, real-time display, analysis, report generation and system configuration
