AEMC 6416

Name: AEMC 6416
Brand: AEMC
SKU: AE09098708A6
Price: 935.00 USD
Availability: InStock

Reference AE09098708A6

Brand AEMC

Clamp-On Ground Resistance Tester with Alarm and Memory Functions

$935

Quantity

Description

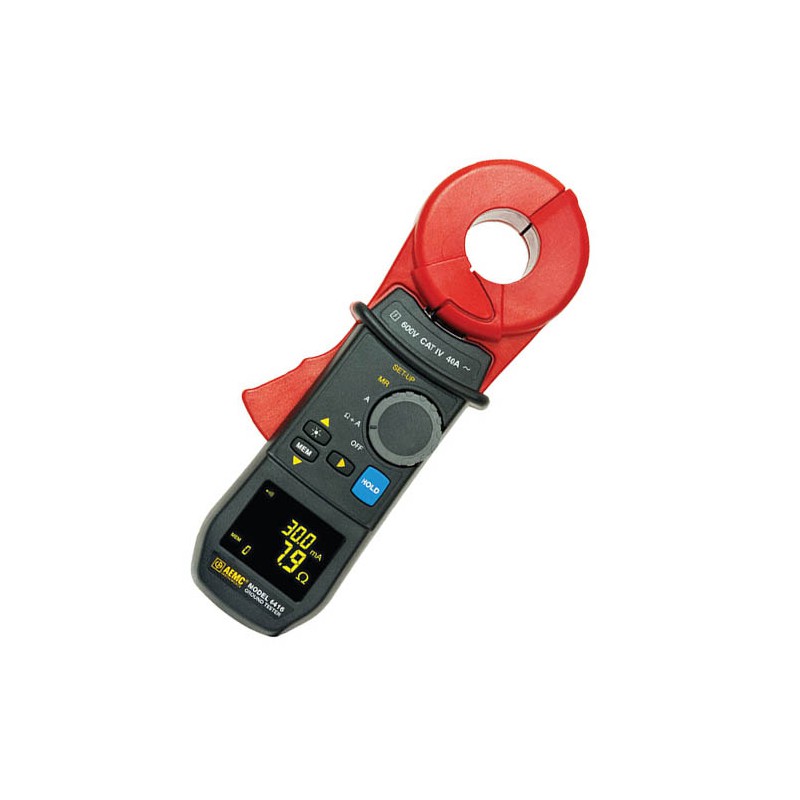

The AEMC 6416 (2141.01) Clamp-On Ground Resistance Tester measures ground rod and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test. The Model 6416 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

Product Details

Reference AE09098708A6

1 - Hard Carrying Case
1 - Calibration Loop
4 - 1.5V AA Batteries
1 - User Manual

Product Features:

Ground integrity measurement
Ground voltage indication warns of possible unsafe conditions
Large multi-function bright yellow organic LED display (OLED)
Selectable test frequency improves accuracy in inductive environments
Large jaw design with clamping diameter of 1.37" (35mm)
Stores up to 300 measurements (Ω and/or A) with time-stamping
Alarm function with adjustable set point and buzzer for checking volts, amps and ohms
Rugged Lexan head and body construction resists breakage
Alarm settings and stored memory information saved during shutdown
Noise icon and buzzer alert user to presence of dangerous voltage and current levels
Designed to EN 61010-1, 600V CAT IV safety standards
Includes Auto Power OFF function
