Additel ADT209  from Additel
  • Additel ADT209  from Additel

Additel ADT209

AD98750656AA
Additel

Loop Calibrator with HART Communication, DC Volts, 0.03% Accuracy

$663
Quantity

Description

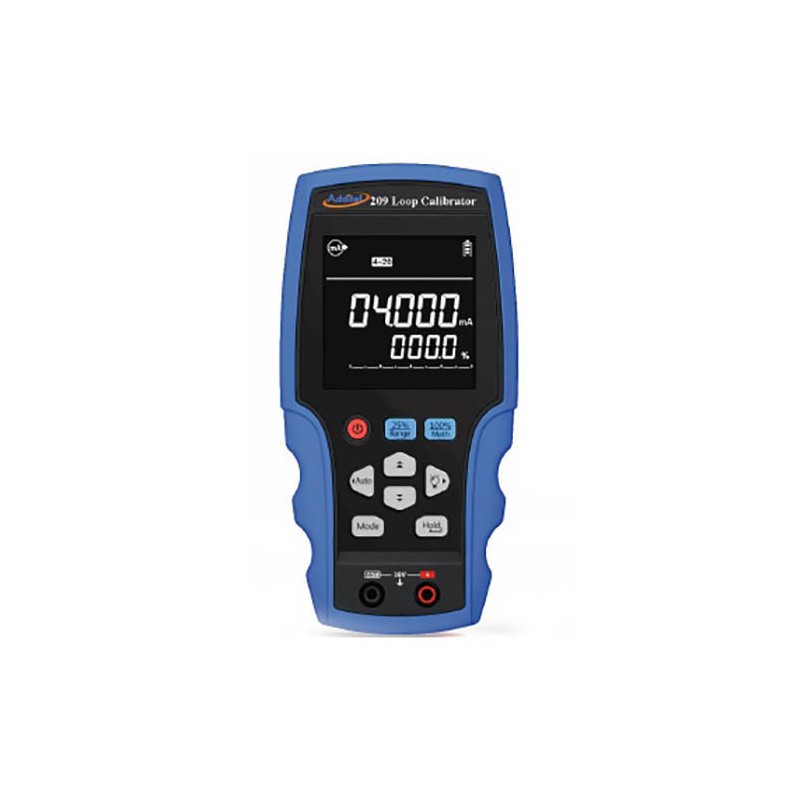

The Additel ADT209 Loop Calibrator, HART Communication, DC, 0.03% Accuracy combines ease of use and functionality, making it the ideal tool to troubleshoot your process loop. The ADT209 has an accuracy of 0.03% of reading. If you want to source, simulate or simply measure, the Additel ADT209 will fit your need. The ADT209 allows for measurement of current, voltage and a switch. You can also simulate or source mA or a process transmitter. With a push of a button, you can switch to zero and span values, auto ramp, and auto step throughout the range. Each loop calibrator has a large, easy to read screen which simultaneously displays the measurement with the % of span.

Product Features:

  • Current DC range: 0 to 24 mA
  • Current DC resolution: 1 μA
  • Source mode: 700 Ω/20 mA maximum
  • Sink mode: External loop voltage nominal 24V, maximum 30V, minimum 12V
  • Accuracy of 0.03% of reading
  • Small and rugged handheld design
  • Measure, source, or simulate loop current
  • Measure DC volts
  • Simultaneously mA and % span display
  • Switch functionality
  • Selectable ramp and step functions
  • Easy to read display and user interface
  • HART 250Ω resistor in series with 24V loop
Product Details
AD98750656AA
  • 1 - Set of Test Leads
  • 2 - Alligator Clips
  • 1 - User Manual
  • 1 - 9V Alkaline Battery
