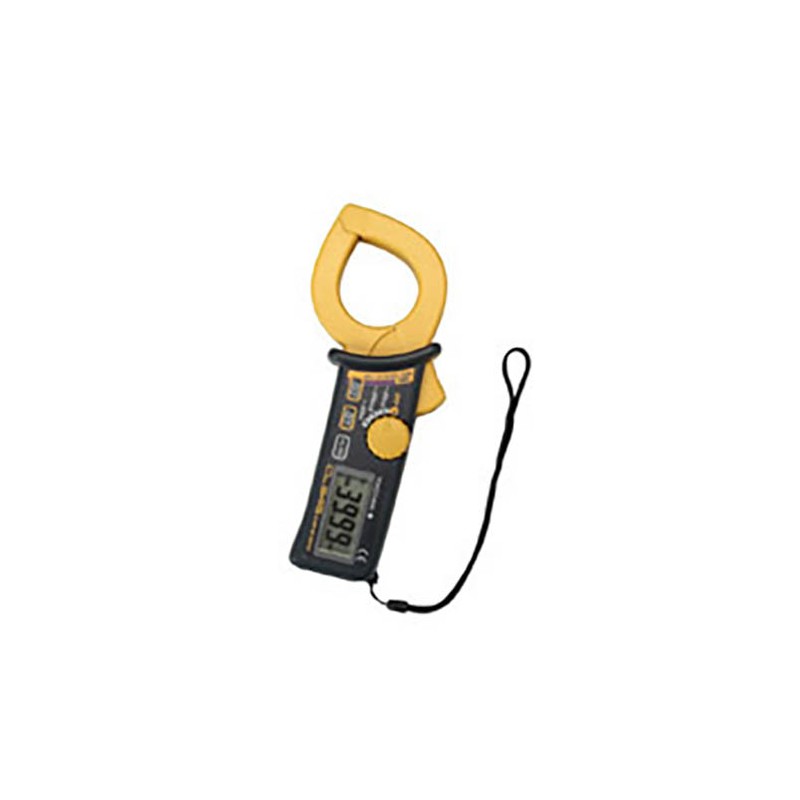

Yokogawa CL345

Product Features:

• Leakage current measurement with current range from 40mA to 400A
• Manual range switching and auto power-off functions
• 40mm in diameter of measurable conductor
• True-RMS display
• Auto power-off
• Manual range switching
• Approved for conformity to safety standards EN61010-2-032 (CAT. III 300 V)
• Method of detection: True-RMS
• Display: LCD (Digital display: 4200 counts)
• Response Time: Approx. 2 second
• Range Switching Manual-range
• Data hold: On all range
• Operating temperature and humidity: 0 - 40°C, 85% RH or less (no condensation)
• Influence of external magnetic field: 10 mA or less in proximity to a 15 mm-dia conductor carrying 100A
• Influence of conductor position: 40/400 mA range: Within 5 dgt at every part inside the jaw 400A range, 0 to 250A: Within ±0.5% rdg ±5 dgt at every part inside the jaw section
• Influence of Residual Current: 12 mA or less in proximity to a 10 mm-dia conductor carrying 100A
• Circuit voltage: 300 Vrms or less
• Withstanding voltage: 3.7 kV AC for one minute
• Power Supply: LR03 x 2; R0-3 (UM-4) x 2
