Tektronix PA3000

Name: Tektronix PA3000
Brand: Tektronix
SKU: TE56404098TP
Price: 6004.00 USD
Availability: InStock

Reference TE56404098TP

Brand Tektronix

Multi-Phase Power Analyzer

$6,004

Quantity

Description

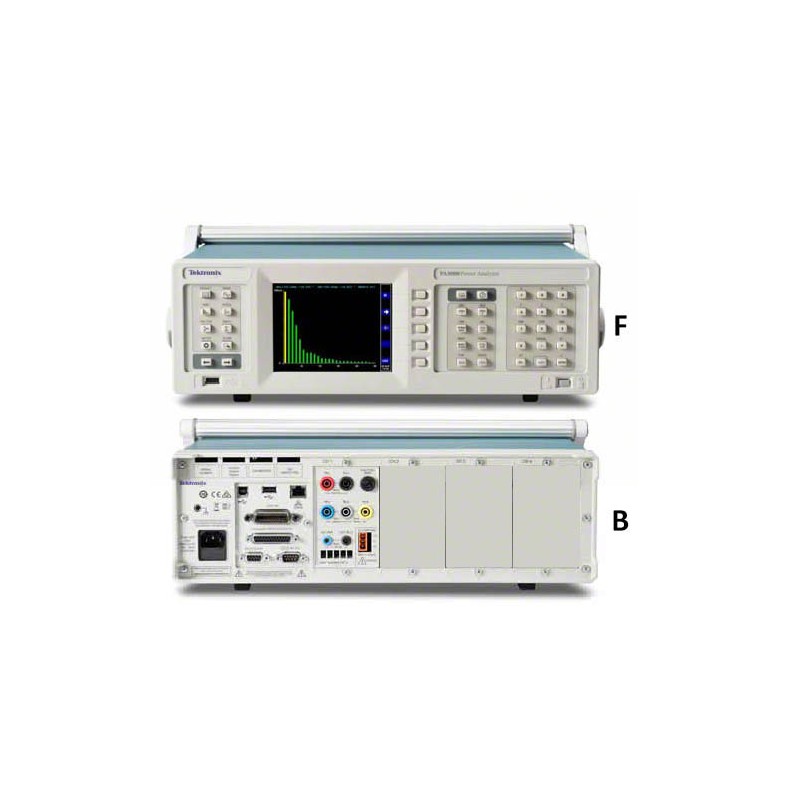

The Tektronix PA3000 is a multi channel power analyzer optimized for testing today’s single and multi-phase, high efficiency power conversion products and designs. Use it to quickly visualize, analyze, and document power efficiency, energy consumption, and electrical performance to the latest regional and international standards including Level VI, EnergyStar, CEC, IEC 62301, and CQC-3146.

Visualize Signals and Analyze Data

The PA3000 full color display provides intuitive readout of measured values, waveforms, harmonic bar charts, energy integration plots, and more. Setup is easy using the menu-driven interface and soft keys.

The PA3000 free PWRVIEW software automates instrument setup and enables data collection, analysis, and report generation with just a few clicks using wizard-driven interfaces.

General Spcifications

LAN: IEEE 802.3, 10BaseT
USB Device: USB 2.0 compatible, 12 Mb/sec
USB Host: Flash drive formatted with FAT12, 16, or 32 file (front panel access)
RS-232: 8 bit, 9600 – 38400 baud rate
GPIB (Option): IEEE 488.2 compliant
EMC: Conforms to European Union EMC directive
Safety: Conforms to European Union Low Voltage directive
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F), 80% relative humidity up to 31 °C (87.8 °F)
Storage Temperature: -25 °C to 65 °C (-13 °F to 149 °F)
Altitude: Up to 2000 m (6562 ft) above sea level
Warm-Up Time: 2 hours
Calibration: 1 year
Power Supply: 100 V to 240 VAC, 50 Hz or 60 Hz, 120 VA maximum
Height: 14.6 cm (5.75 in) 13.2 cm (5.2 in) without feet
Width: 42 cm (16.5 in)
Depth: 31 cm (12.5 in)
Weight: 9.5 kg (20.9 lb.) – 4 channel instrument with GPIB option installed

Product Details

Reference TE56404098TP

1 - Multi-Phase Power Analyzer Input Module

Product Features:

Multi supports single-and three phase applications
20 mW standby power measurements
1 MHz bandwidth
Harmonic analysis to 100th order
±0.04% basic voltage and current accuracy
Measurements to 30 Arms and 600 Vrms Cat II (2000 Vpk)
USB and LAN interfaces standard (GPIB option)
Free PWRVIEW software
High accuracy supports testing to Level VI efficiency standards for external AC/DC power supplies
Dedicated energy consumption testing in integration mode for standards like Energy star and CEC
Complete solution for full compliance testing to IEC 62301 standby power requirements
High 1 MHz bandwidth supports the LED Module energy certification requirements of CQC-3146
More than 50 standard measurement functions, including harmonics, frequency, and star-delta computation
Multiple analog and digital inputs for sensor data such as thermocouples, speeds sensors, and torques sensors
Built-in ±15 V supplies for external transducers to support high current applications
