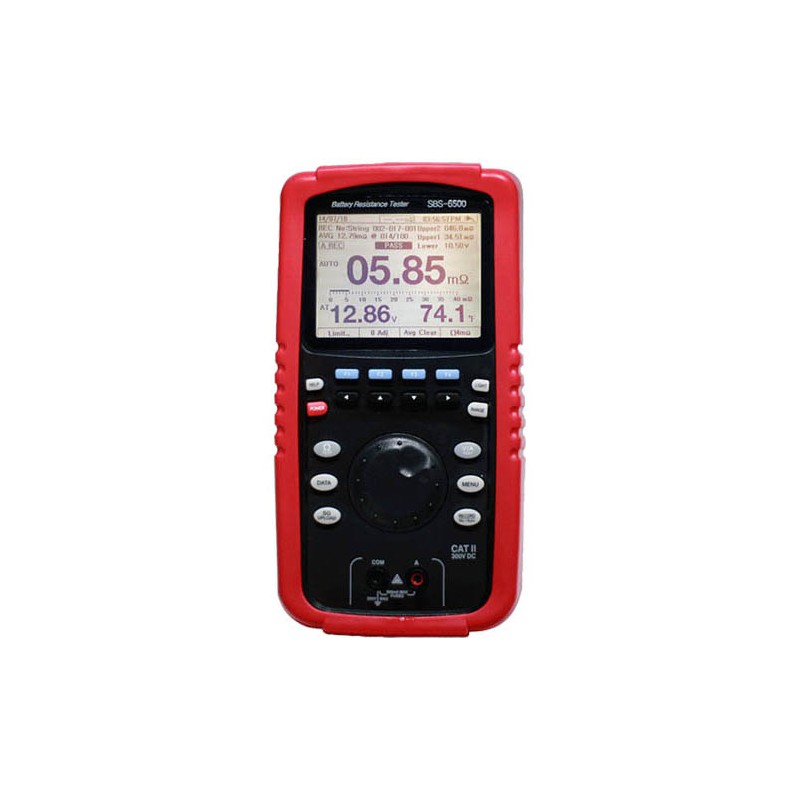

Storage Battery Systems SBS-6500

The Storage Battery Systems SBS-6500 Digital Battery Resistance Tester measures the impedance (internal resistance), voltage and temperature of batteries across all applications and types including lead acid cells, nickel-cadmium batteries, lithium-ion batteries and nickel-metal hydride batteries. Readings of cells and intercell connectors are taken within seconds using the included pin probes (or optional clamp probes). This model meets IEEE and NERC maintenance recommendations for stationary battery systems. The SBS-6500 can be programmed with site names, battery details and pass/warning/fail alarm set points for resistance measurements (pass/fail for voltage). All data is retained in the meter's internal memory for easy on-site access. With a computer and the included software, the SBS-6500 generates custom graphical reports for historical trending and comparisons. The SBS-6500 can also be paired with the SBS-2003 digital hydrometer to import specific gravity readings from the SBS-2003 into the SBS-6500. With this data merge, the SBS-6500 will store and generate reports with voltage, resistance, temperature and gravity readings.

• Measures the impedance (internal resistance), voltage, and temperature of batteries
• Tests flooded lead acid, VRLA, NiCd, Li-ion and NiMH batteries and strings
• Voltage testing range of 0-100V DC
• IEC 6101-1 CAT II 300V Safety Standard
• Built-in NiMH battery with unit charging cord
• Large 3.8 inch LCD backlit display
• On-screen pass/warning/fail indication during testing based on set parameters
• Quickly records and stores resistance, voltage and temperature of strings, cells and intercell connectors
• SD Card storage capacity
• Instantly retests and recalls readings on-site
• Pin probe or clamp probe compatible
• Battery string and parameter set up via unit or software
• Organizes data by name and parameters for each battery string (up to 300 strings)
• Meets IEEE and NERC maintenance recommendations for stationary battery systems
• User-friendly software and easy-to-navigate menu
• Battery string and parameter set up via unit or software
• Stores and displays all historical data on handheld unit
• Communicates with computer and software via USB port

Applications:

• Telecom
• Utility
• Oil and Gas
• Solar/Photovoltaic
• UPS
• Emergency Lighting
• Railways
