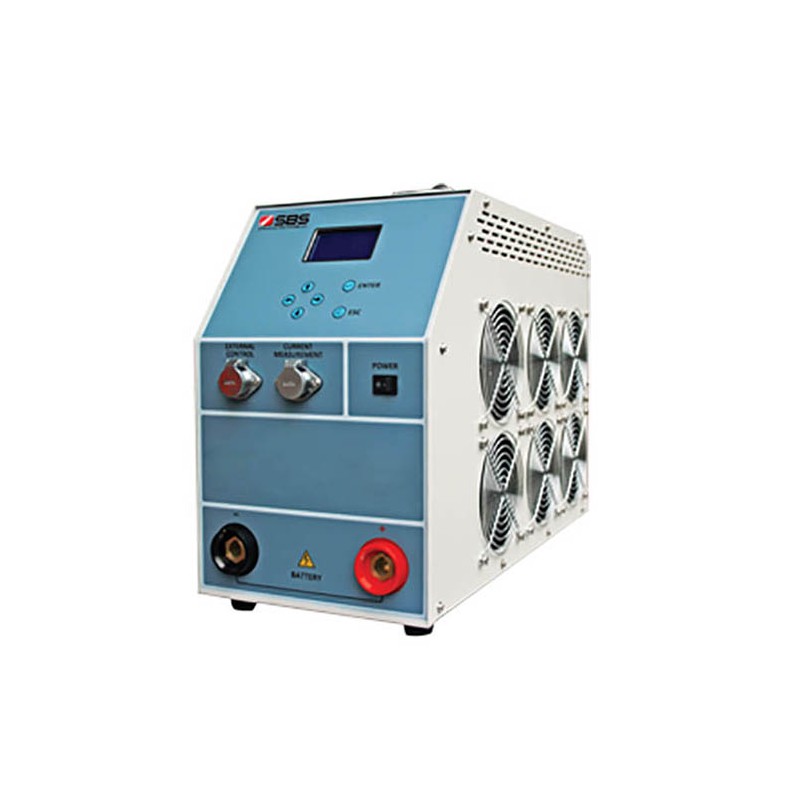

Storage Battery Systems SBS-4830S

The Storage Battery Systems SBS-4830S DC Load Bank 24V DC 0-150 Amp/ 48V DC 0-300 Amp discharge tests and load tests stationary batteries as recommended. NERC standard PRC-005-2 requires that vented lead acid and nickel cadmium (NiCd) systems be discharge tested every six (6) years and valve regulated lead acid (VRLA) batteries every three (3) years. IEEE recommends load testing stationary flooded/vented lead acid and NiCd stationary batteries every five(5) years and VRLA batteries every 12-18 months. The SBS-4830S is an affordable way to perform easy and accurate IEEE450 (vented lead acid), IEEE1106 (NiCd) and IEEE1188 (VRLA) load tests.

Displays the voltage, current and Ah removed from the string during the test. Since this is a constant current load bank, the user also does not have to adjust the current during the test. These load banks come standard with multiple adjustable stop points and built-in protection to ensure that the batteries are never damaged due to over-discharge.

• 24V DC 0-150 Amp / 48V DC 0-300 Amp
• Perform IEEE450 (Vented Lead-Acid), IEEE1106 (Ni-Cad) and IEEE1188 (VRLA) load tests
• Automatically discharges batteries unmanned without danger of over-discharging
• Continuously holds the current set throughout the test
• LCD screen displays real time voltage, discharge current and capacity/Ah removed
• Test parameters adjustable during test without stopping test
• 3 adjustable stop points for built-in protection: end system voltage, test time, and capacity discharged
• Units can be slaved with the SBS-8400 and/or other load banks to increase amp draw
• Built-in protections: Over load protection, high voltage shutdown, high temperature shutdown, audible alarm, warning on LCD screen
