Storage Battery Systems SBS-4815CT

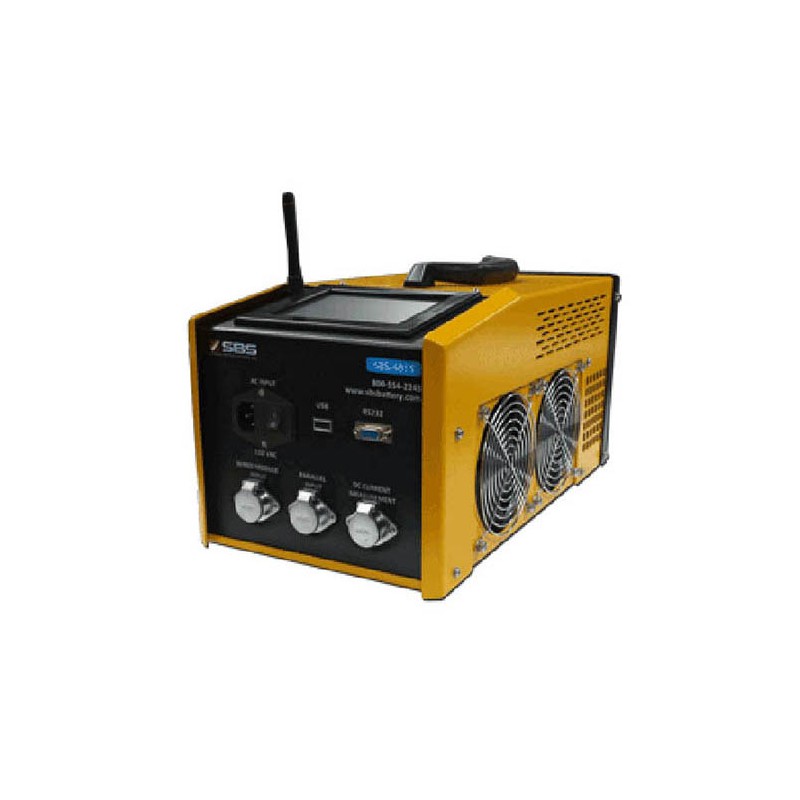

The Storage Battery Systems SBS4815CT Battery Discharger and Capacity Tester is a fully programmable and portable constant current load bank with detailed data acquisition and display capabilities. This model features wireless battery monitoring technology. Compared with the traditional method of each module only monitoring 1 cell, the new wiring operation becomes easier because the quantity of new modules needed is only a quarter of old-fashioned modules. This model is available for offline and online discharging tests of multiple battery strings, and the SBS-4815CT can simultaneously record the actual discharge currents of each battery strings in the test. With automatic calculating function for the discharging current, SBS-4815CT installs the discharge current formula for all hour rates internally, so the setting interface can indicate the suitable discharge currents without manual calculation according to the marked capacities of battery strings and the testing hour rates. Display of the histogram of all batteries to follow the battery voltage tracks in entire discharging process, using the different colors to highlight the lowest and the highest voltage, which can simplify the analysis of the battery voltages.

The SBS-4815CT connects with a PC during the discharge for downloading of the real time data, which can also be downloaded via USB after the discharging process. The included powerful analysis software supports data downloading and analyzing through real time communication or USB memory devices. The software interface includes: battery voltages curve and bar chart, battery resistances bar chart, group voltage curve, current curve, capacities histogram, data form and so on. With a powerful capacity estimating function, the software can predict the capacity of each battery in the tested group. The software shows the data in different formats, including bar charts, curve, and form. Any window can be magnified, and the software automatically generates EXCEL data reports make it convenient to send or download data.

• For 24/48V DC Battery Systems
• Voltage and current range: 20-60V DC / 0-150 Amps
• 5.7 inch LCD touch screen
• 4 adjustable stop points and multiple alarm designs
• Wireless modules that measure and record individual cell voltages during testing
• View test data in real time on screen or with computer via RS232
• Menu interface provides data management operations for parameter settings, test results review, and download by RS232 or USB device to the computer software
• Built-in memory continuously records discharge data including: overall system voltage, current and individual cell voltages (when modules are installed)
• Automatically protects and saves data from an unexpected test stop/end
• Powerful analytical software calculates test results and reports cell/battery conditions and capacity
• Software interface displays detailed graphs and charts
• Ability to export raw data into customized Excel reports, download data after discharge to USB drive
• Can be powered from DC or AC power supply
• Can be slaved with other load banks of the same voltage to increase discharge current
• Designed for portability
• Tester Weight: 21 lbs

Applications:

• Telecom
• Forklifts, Golf Carts and AGVs
• Power Plants
• Oil Companies
