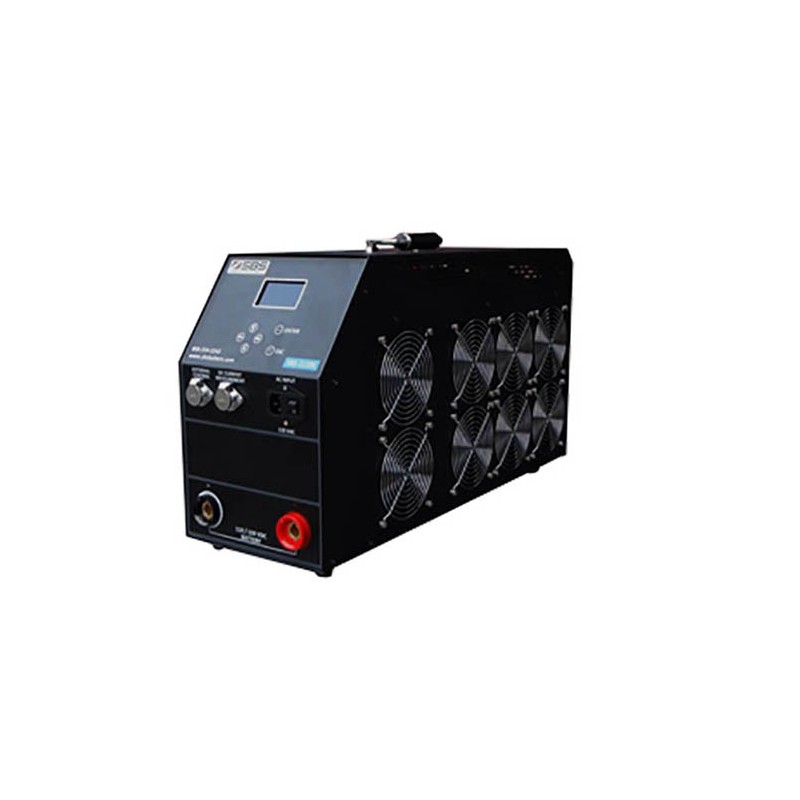

Storage Battery Systems SBS-1110S

The Storage Battery Systems SBS-1110S Constant Current DC Load Bank 125V DC, 0-100A performs accurate IEEE450 (Vented Lead-Acid), IEEE1106 (Ni-Cad) and IEEE1188 (VRLA) load tests on stationary batteries as recommended. NERC standard PRC-005-2 requires that vented lead acid and nickel cadmium (NiCd) systems be discharge tested every six (6) years and valve regulated lead acid (VRLA) batteries every three (3) years. IEEE recommends load testing stationary flooded/vented lead acid and NiCd stationary batteries every five (5 )years and VRLA batteries every 12-18 months.

The SBS1110S displays the voltage, current and Ah removed from the string during the test. Since this is a constant current load bank, the user also does not have to adjust the current during the test. The SBS1110S load bank comes standard with multiple adjustable stop points and built-in protection to ensure that the batteries are never damaged due to over-discharge.

• 125V DC 0-100 Amp
• Automatically discharges batteries unmanned without danger of over-discharging
• Built-in protections: Over load protection, high voltage shutdown, high temperature shutdown, audible alarm, warning on LCD screen
• 3 adjustable stop points: End system voltage, Discharge time, Discharge capacity (Ah)
• User can set: end system voltage, test time, and capacity discharged
• Continuously holds the current set throughout the test
• LCD screen displays real time voltage, discharge current and capacity/Ah removed
• Test parameters adjustable during test: end system voltage, discharge time, discharge capacity (Ah)
• Units can be slaved with the SBS-8400 and/or other load banks to increase amp draw
• Perform IEEE450 (Vented Lead-Acid), IEEE1106 (Ni-Cad) and IEEE1188 (VRLA) load tests
