Owon HSA1036-TG

Name: Owon HSA1036-TG
Brand: Owon
SKU: OW23973080OH
Price: 2890.00 USD
Availability: InStock

Reference OW23973080OH

Brand Owon

9 kHz - 3.6 GHz Handheld Spectrum Analyzer, with Tracking Generator and EMI Pre-Compliance Test

$2,890

Quantity

Description

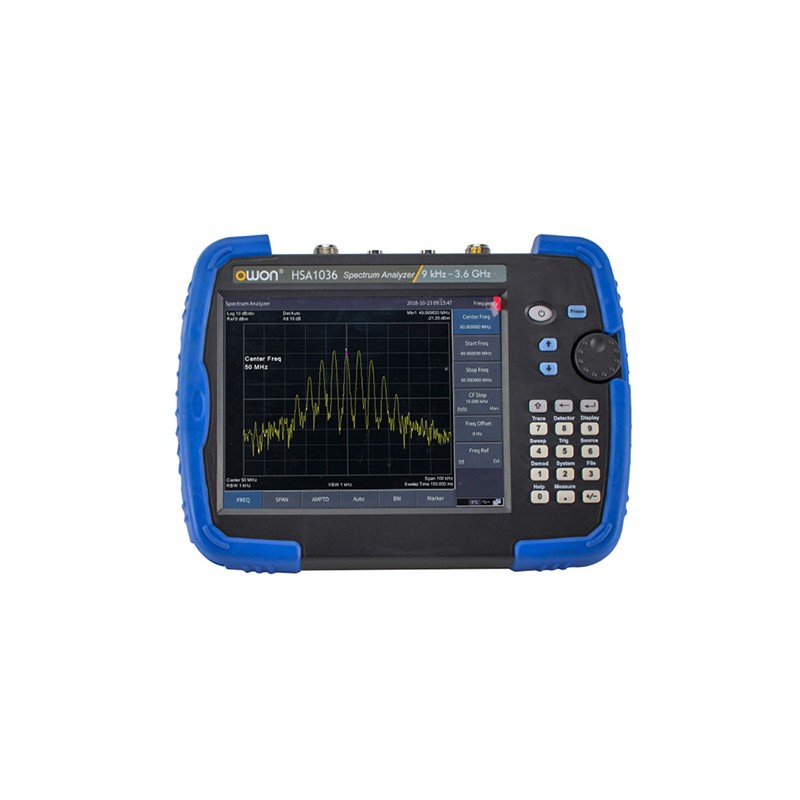

The Owon HSA1036TG 9 kHz - 3.6 GHz Handheld Spectrum Analyzer, with Tracking Generator and EMI Pre-Compliance Test is a handheld spectrum analyzer, featuring a non-slip silicone case to protect the device and an 8 in. LCD touchscreen display with built-in light sensor to adjust to the environment, enabling operation even in full sunlight. The HSA1036-TG offers accurate low-noise measurements and excellent small signal measurement capability. This model includes the EMI Pre-Compliance Test function and comes equipped with an EMI filter (6dB) and peak detector. It is accurate for EMI pre-test and diagnosis and the complete testing and production report can be completed using supporting software.

Product Details

Reference OW23973080OH

1 - HSA1036-TG
1 - Power Cord
1 - CD-Rom
1 - Quick Guide
1 - USB Cable
1 - Adapter
1 - Metal Carry Case
1 - GPS Antenna

Product Features:

Frequency Range from 9 kHz up to 1.6 GHz
-160dBm Displayed Average Noise Level
Phase Noise -82dBc/Hz @1Gz and offset at 10KHz
Total Amplitude Accuracy <1.5dB
10Hz Minimum Resolution Bandwidth (RBW)
Standard GPS receiver
EMI Pre-compliance Test Kit
100 kHz-3.6 GHz Tracking Generator Kit
35 MHz-3.6 GHz Signal Generator
8 in. IPS touchscreen display
Wider viewing angle
Detectors: Positive-peak, negative-peak, sample, normal, RMS
Trace functions: Clear write, Max Hold, Min Hold, View, Blank, Average
Standard GPS receiver, optional antenna, the latitude/longitude information and test information can be recorded
Li-ion battery
Operating life up to 4-6 hours
