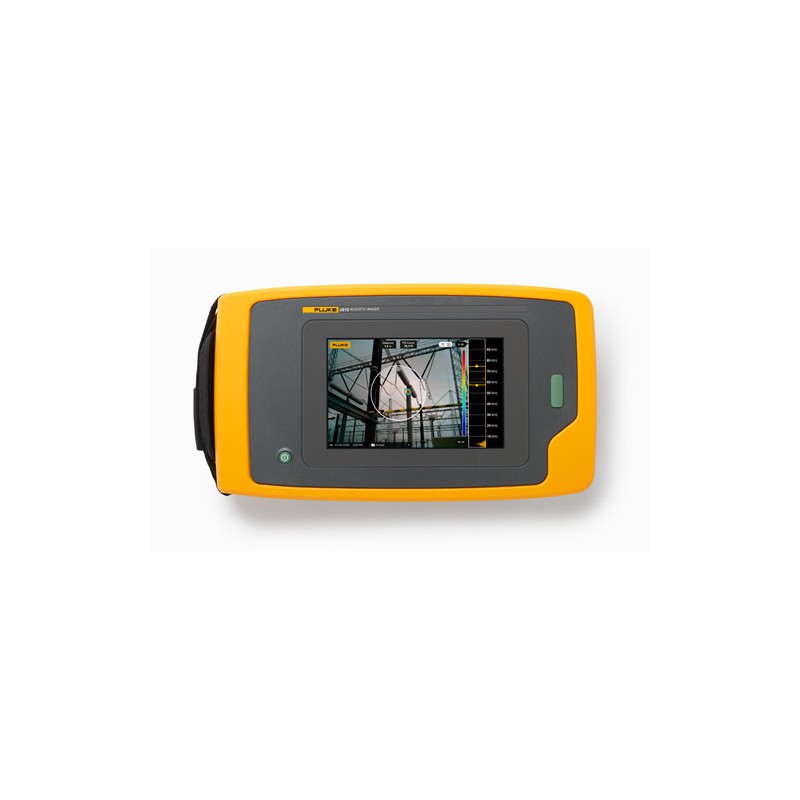

Fluke II910 Precision Acoustic Imager

$20,655

Quantity

Description

Fluke II910 Leaks in compressed air, gas, steam and vacuum systems hurt both production uptime and the operations bottom line.

With Fluke While most manufacturers know that these types of leaks exist, it has been too time consuming and tedious to address them until now. With the Youtube ii910 Precision Acoustic Imager and minimal training, your maintenance technicians can begin checking for leaks during their typical maintenance routine-even during peak operation hours.

Fluke II910 acoustic imagers let technicians see sound as they scan hoses, fittings, and connections for leaks. The II910 built-in acoustic array of tiny sensitive microphones generates a spectrum of decibel levels per frequency. Based on this output, an algorithm calculates a sound image, known as SoundMap™ that is superimposed on a visual image. The SoundMap is automatically adapted depending on the frequency level selected so that background noise is filtered out, making it incredibly simple to detect compressed gas leaks.

Finally a better way to detect compressed air, gas, steam and vacuum leaks using Fluke System. Plus, the II910 provides increased sensitivity to detect leaks that are smaller or farther away.

Detecting Partial Discharge (PD)

The invisible threat you can now see

Fluke II910 Partial Discharge is a very serious issue that you would like to be able to monitor quickly and easily. Whether you are inspecting insulators, transformers, switch gears or high voltage powerlines you need to be sure that you spot a problem quickly and early. Partial discharge that goes unchecked can cause blackouts, fires, explosions, or death from arc flashes. In addition to the danger that partial discharge poses to human lives and the environment, there is a significant monetary risk of downtime. Having equipment go down can cost millions of dollars per hour of downtime.

The Fluke ii910 Precision Acoustic Imager is the perfect tool for high voltage electricians, electrical test engineers, and grid maintenance teams that are constantly inspecting and maintaining power distribution and industrial high voltage equipment. The ii910 provides a safe quick and easy way to detect and locate partial discharge in order to maintain high voltage equipment and prevent catastrophic events. With the SoundSight™ technology the ii910 translates the sounds that it hears into a visual representation so that you can quickly locate problem areas. The higher frequency capability of the ii910 allows for earlier detection to facilitate early maintenance planning and is why the ii910 has a frequency range of 2-100Khz.

Product Details

Reference FL36231159FI

1 - ii910 Precision Acoustic Imager
1 - AC Power Supply and Battery Pack Charger with Universal AC Adapters
2 - Rugged Lithium Ion Smart Battery Packs
1 - USB Cable
1 - Rugged, Hard Carrying Case
2 - Rubber Array Covers
1 - Adjustable Hand Strap and Adjustable Neck Strap

Product Features:

Partial discharge detection detects Corona and Partial Discharge (PD), even when there is no direct line of sight
Cut costs and save energy everyday by taking the guesswork out of finding and fixing partial discharge
High sensitivity allows users to detect PD at earlier stages, enabling condition-base maintenance and planning service of equipment (vs preventive replacing/servicing/cleaning)
SoundSight™ technology translates sounds into visual representation so that users can easily scan and quickly locate problem areas
Ease of use allows untrained users to detect, locate, and assess severity of Partial Discharge, Corona Discharge or Gas/Vacuum leaks, easier, faster, and more effectively than existing Ultrasonic Tools, by using visual images to better pinpoint and report PD, Corona or Gas leak
PDQ Mode™ provides relative severity of discharge, which provides information to users on whether action may or may not be needed after PD has been detected
LeakQ™ estimates size and cost of leak, including new distance-estimation feature and 1-10 LeakQ™ severity index
Images can be uploaded online to generate leak reports including leak size and cost estimation
Video recording up to 5 minutes can capture behavior of identified problem or capture larger environment to review at later stage potential spots to review in further detail
64 special designed and positioned MEM microphones in sensor head as well as proper algorithms to efficiently process data providing users with optimal detection capabilities

Sensors

Frequency band: 2 kHz to 52 kHz
Detection range: 0.5 to > 70 meters (1.6 to > 230 feet), depending on ambient conditions
Field of view: 63°± 5°
Nominal frame rate: 25 FPS (number of Frames Per Second (FPS) indicates number of times image on screen is refreshed each second)

Built-in digital camera (visible light)

Field of view (FOV): 63°± 5°
Focus: Fixed lens

Display

Size: 7 in. LCD with backlight, sunlight readable
Resolution: 1280 x 800 (1,024,000 pixels)
Touchscreen: Capacitive (extremely precise and quick responding)
Acoustic image: Yes, SoundMap™ image (visual map of noise sources using acoustical array)

Image Storage

Storage capacity: Internal memory with capacity for 999 picture files and 20 video files
Image format: Blended visual and SoundMap™ .JPG or .PNG
Video format: Blended visual and SoundMap™ .MP4
Video length: Up to 5 minutes
Digital export: USB-C for data transfer

Acoustic Measurements

Measurement range:
- 15.4 dB SPL to 115.2 dB SPL; ±1 dB SPL 2 kHz
- 5.6 dB SPL to 102.5 dB SPL; ±2 dB SPL 19 kHz
- 28.4 dB SPL to 131.1 dB SPL; ±1 dB SPL 35 kHz
- 41.8 dB SPL to 133.1 dB SPL; ±3 dB SPL 52 kHz
Sound pressure level (dB SPL) or acoustic pressure is local pressure deviation from ambient-decible and sound pressure level
Auto max/min dB gain: Auto or manual, user selectable
Frequency band selection: User selectable through user-made presets or manual entry

Software

Ease of use: Intuitive user interface
Trend graphs: Frequency and dB scale
Spot markers: dB level reading at center point of image

Battery

Batteries (field-replaceable, rechargeable): 2 x Rechargeable Li-ion, Fluke BP291
Battery life: 6 hours/battery (product includes spare battery)
Battery charging time: 3 hours
Battery charging system: External dual-bay charger, EDBC 290

General Specifications

Standard palettes: Grayscale, Ironbow and Blue-Red
Operating temperature: -10 °C to 40 °C (14 °F to 104 °F)
Storage temperature: -20 °C to 70 °C ( -4 °F to 158 °F) without batteries installed
Relative humidity: 10% to 95% non-condensing
Size: (H x W x L): 186mm x 322mm x 68mm (7.3 inches x 12.7 inches x 2.7 inches)
Ingress Protection (IP): IP40 (protection against particles 1mm or greater and dripping water)
Warranty: 2 years
Self-diagnostic notification: Array-health test to identify when microphone array needs attention
Supported languages: Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS compliant: Yes
General safety: IEC 61010-1
