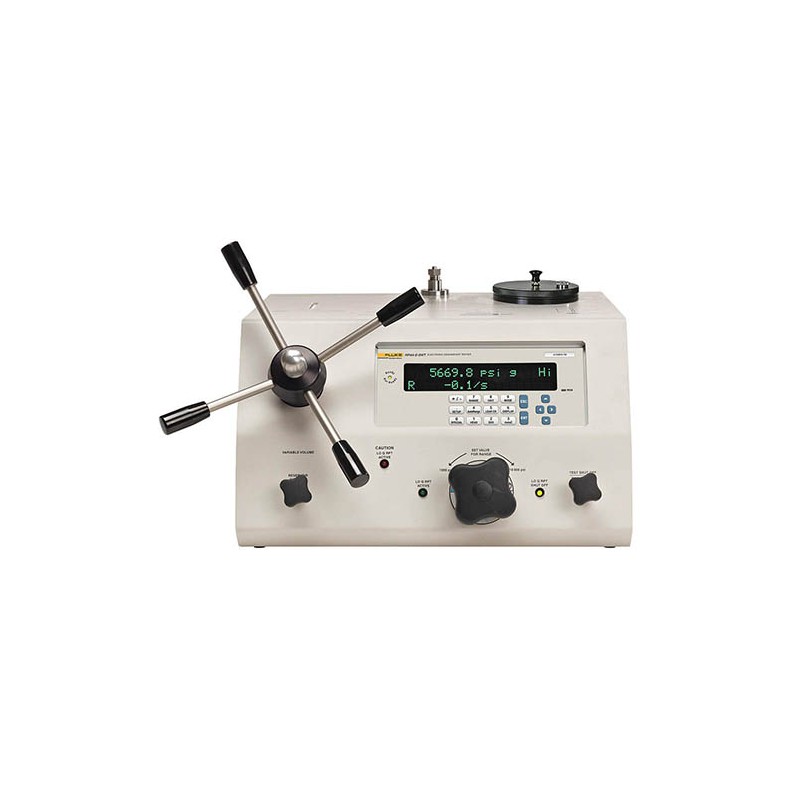

Fluke Calibration 6532-70M

Name: Fluke Calibration 6532-70M
Brand: Fluke
SKU: FL69537150FC
Price: 39780.00 USD
Availability: InStock

Reference FL69537150FC

Brand Fluke

Electronic Deadweight Tester Kit, 0.7 to 70 MPa (100 to 10000 psi)

$39,780

Quantity

Description

The Fluke Calibration 653270M Electronic Deadweight Tester Kit, 0.7 to 70 MPa (100 to 10000 psi) is at home in metrology and calibration labs, on the production floor, or in the field. It can operate with a wide selection of test mediums, including Sebacate calibration fluid, mineral oil, water and other liquids. ± 0.02 % of reading total one-year measurement uncertainty rivals the best laboratory deadweight testers. High quality hardware allows for easy system fill and prime, pressure generation, and precise control. Premium performance is wrapped up into one, compact, lightweight, transportable package. An optional battery/charger pack supports up to eight hours of operation away from line power, and an optional shipping/carrying case with handles and wheels allows for easy transport during field application.

High Performance Calibration Made Simple

Fluke Calibration 6532-70M features E-DWT-H configurations, combined with the accessories needed for a complete calibration system. The 6532-70M options feature an additional Q-RPT to maximize workload coverage, with percent of reading performance from 1% to 100% of device full scale. An included vacuum fill kit allows the E-DWT to be filled with your choice of compatible fluid, while eliminating problematic air pockets from the test circuit. Also included is a test station adapter to mount just about any pressure device to be tested without using PTFE tape or wrenches. The 6532-70M provides all that you need to perform high level hydraulic pressure calibration, right out of the box.

Product Features:

Pressure range: 0.7 to 70 MPa (100 to 10000 psi)
± 0.02 % of reading total one-year accuracy, 0.025 % for two years
Low torque variable volume allows for pressure generation and control up to 70 MPa (10000 psi) with minimal physical effort
Built-in priming system to fill system with test fluid and purge unwanted air to ensure smooth operation
Unique test port design eliminates need for PTFE tape or wrenches
Adapters: 1/8 in., 1/4 in., 3/8 in. and 1/2 in. NPT; 1/8 in., 1/4 in., 3/8 in. and 1/2 in. BSP; M20 x 1.5 and M14 x 1.5
Compatible with wide range of liquids, including water
Vacuum fill kit fills E-DWT with any compatible test medium
AutoTest, AutoRange, ready/not ready indicator, onboard data capture and storage, overpressure alarm, RS-232 remote interface and other advanced features to simplify testing
Improve safety and prevent calibration errors and damage to equipment
Optional foot switch accessory allows hands-free data collection when running AutoTests
Rechargeable battery pack and transport case options for field operation
No weights to load and unload, transport or send out for calibration
Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature
No piston-cylinder changes
No significant sensitivity to level or vibration
Set and read any pressure value exactly, no minimum increment limited by smallest available masses
Perfect for applications that require setting nominal pressure precisely on the device under test and measuring it, such as analog gauge calibration
Operates in any unit of measure, switching easily from one unit to the next
