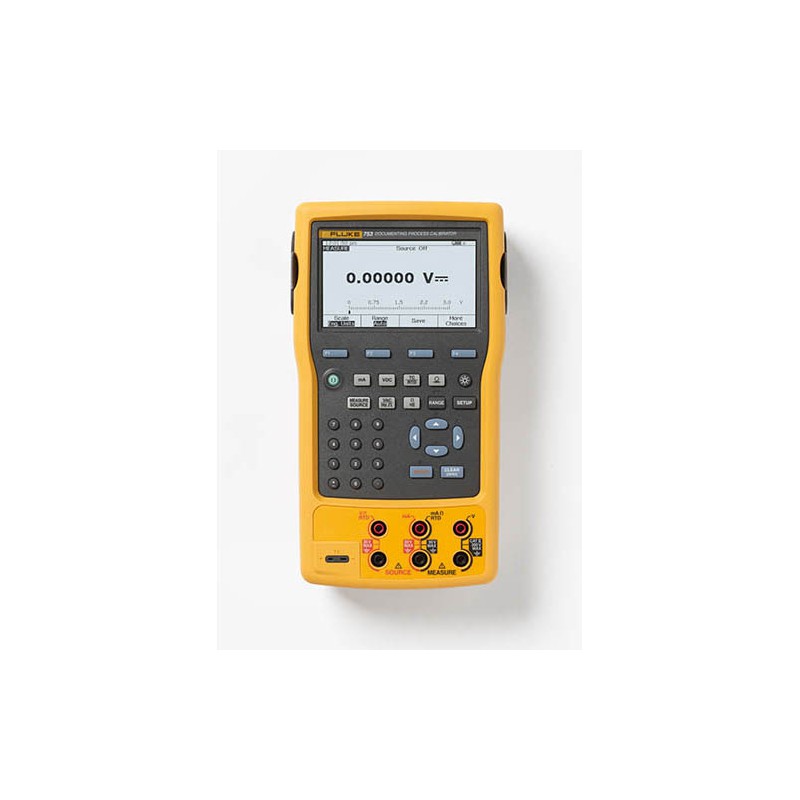

The Fluke 753 Documenting Process Calibrator offers simultaneous source and measure capabilities for all common process parameters. It does the work of several tools: sourcing, simulating and measuring pressure, temperature, and electrical signals, all in one rugged, hand-held device. Create and execute automated procedures and automatically capture the results. The USB interface enables two-way communication with popular PC-based instrumentation management applications.
Product Features:
- Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
- Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
- Power transmitters during test using loop supply with simultaneous mA measurement
- Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations
- Record and document results
- Holds up to a full week of downloaded procedures and calibration results.
- Use many features like autostep, custom units, user-entered values during testing, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay, etc.
- Easy to use
- Bright white dual display
- Read both sourced and measured parameters simultaneously
- Multi-lingual interface
- Rechargeable Li-Ion battery for 10 hour, uninterrupted use
- Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms
- Delivered with DPC/Track Sample software
- Compatible with many Asset Management software packages
