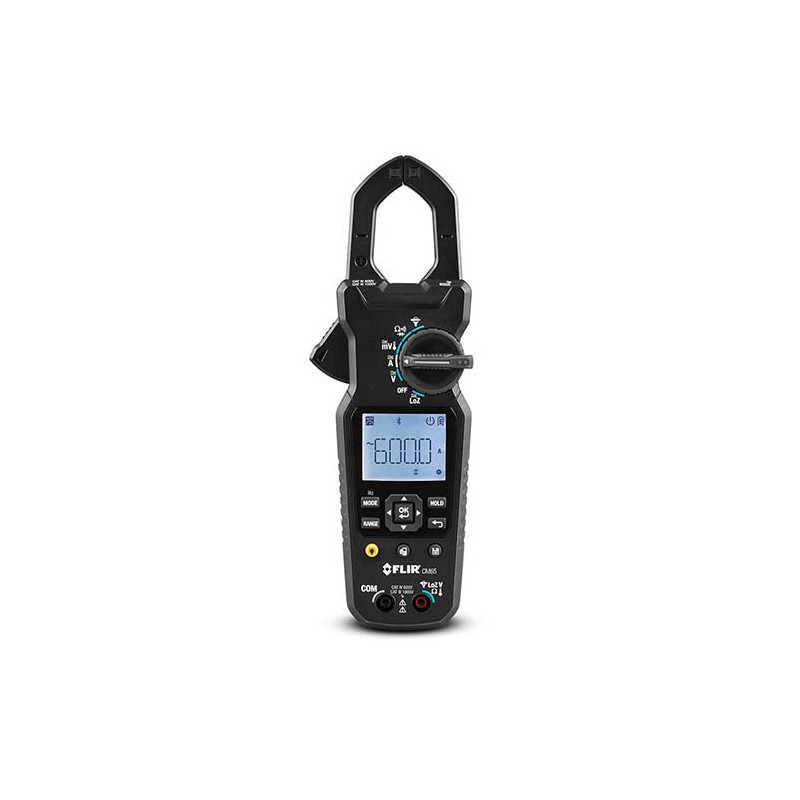

FLIR CM65-NIST

Name: FLIR CM65-NIST
Brand: Flir
SKU: FL69997729FC
Price: 488.00 USD
Availability: InStock

Reference FL69997729FC

Brand Flir

True-RMS AC/DC Solar Clamp Meter with METERLiNK and NIST Calibration, 600 AAC/DC, 1000 VAC/DC

$488

Quantity

Description

The FLIR CM65-NIST True-RMS AC/DC Solar Clamp Meter with METERLiNK and NIST Calibration, 600 AAC/DC, 1000 VAC/DC is rugged, designed to meet the challenges of solar installation, maintenance, and repair. This clamp meter comes with quick-connect MC4 test leads that improve the accuracy and safety of DC voltage measurements on solar panel strings and inverters. With the CM65-NIST, users can validate AC output and inverter efficiency and then store readings to the internal memory. Share data wirelessly via METERLiNK® or monitor measurements live on a smartphone running the FLIR Tools® mobile app. Photovoltaic (PV) installers can trust the CM65-NIST as their go-to tool for accelerating and simplifying photovoltaic panel testing on new and existing solar panels.

Product Details

Reference FL69997729FC

1 - CM65 True-RMS AC/DC Solar Clamp Meter
1 - NIST Certificate of Calibration
1 - Test Lead Set
1 - MC4 Test Lead Set
1 - Soft Carrying Pouch
1 - Type-K Thermocouple
1 - Quick Start Guide
1 - User Manual

Product Features:

AC current range: 60.00, 600.0 A
DC current range: 60.00, 600.0 A
AC voltage range: 60.00, 600.0, 1000 V
DC voltage range: 60.00, 600.0, 1000 V
True RMS means users can trust that AC voltage and current measurements from inverters and mains are accurate
Eliminate errors from residual ghost voltage using LoZ (low impedance) mode
Get sharp ±1.5% accuracy when taking AC and DC current readings
Capture smallest voltage fluctuations when calibrating equipment using millivolt function
Full-featured clamp meter with solar industry-standard connectors helps users pinpoint trouble fast
Reduce time needed for live/dead testing with included MC4 test leads
Gain quick insights with Data Hold, Min/Max readings, and relative mode to zero meter
Troubleshoot string connections and components with Continuity test mode
Measure resistance, frequency and temperature
Easily clamp around wires with generous jaw (30 mm) and ergonomic design
Packed with tools to help users validate testing, document readings, and share results
Take measurements, document results, and then share them easily
Identify trends and anomalies by data logging directly to internal memory
View readings right on mobile device using METERLiNK® and FLIR Tools® Mobile app anywhere on job sites
Includes NIST Calibration
